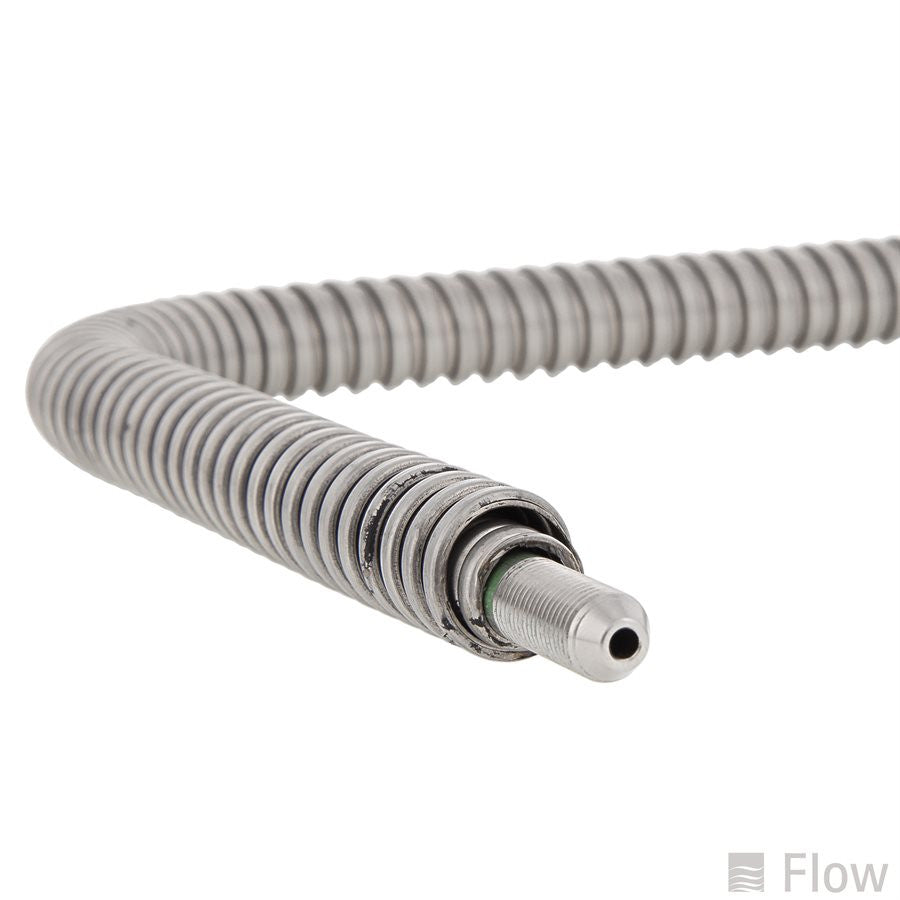

Tube Assembly For 87K Attenuator U-Shape

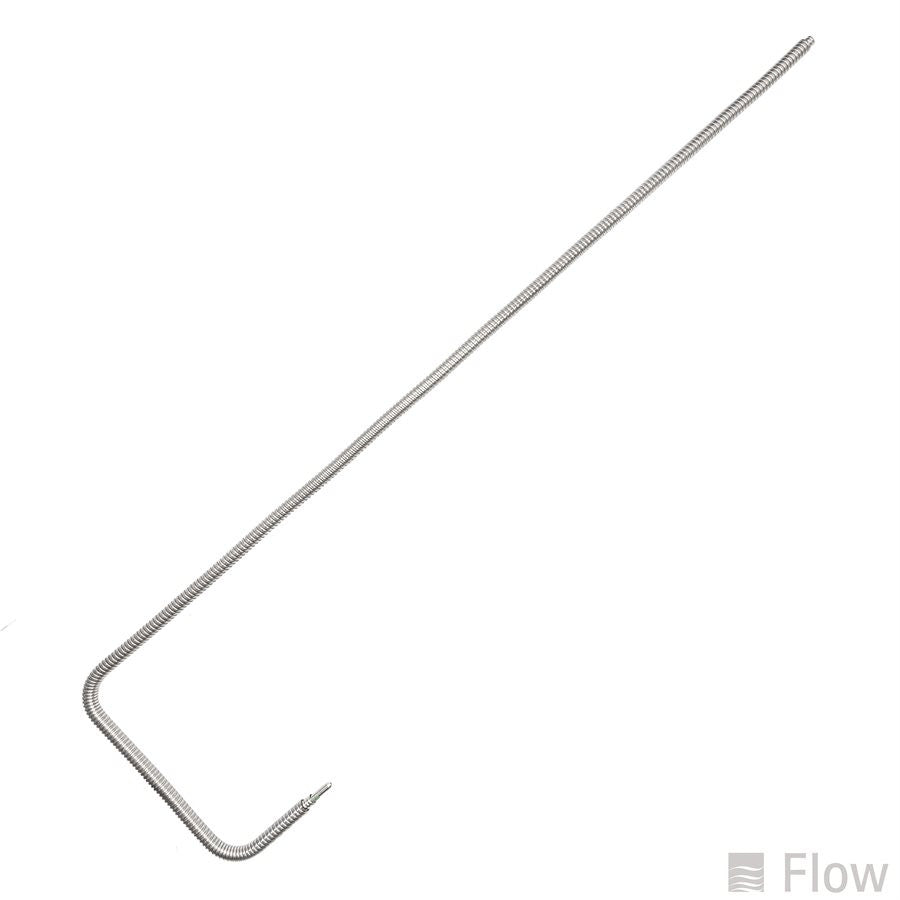

A factory-formed ultra-high-pressure tube used to route 87,000 psi water through the attenuator circuit on compatible Flow HyperJet® pump systems. Its U-shaped geometry is designed to match the OEM plumbing path, helping maintain proper alignment between high-pressure ports while reducing side load on cone-style sealing connections. This assembly is best replaced when the original tube shows cone fretting, distortion, scoring, leakage, or damage from repeated installation cycles.

Related products:

• 94K HyperJet Metric Attenuator 1.0L (019579-2) — the attenuator assembly this style of 87K tube is commonly associated with in the high-pressure circuit.
• Tube Assembly for 87K Bleed Down (042209-1) — connects the bleed-down valve to the attenuator/manifold circuit for controlled pressure release.
• 87K Bleed Down Valve Assembly (019309-1) — safely vents stored pressure from the attenuator and high-pressure manifold after operation.
• 87K 3/8" Anti Vibration Gland (A-2838) — secures 3/8" OD ultra-high-pressure tubing into 87K ports and helps resist vibration-related loosening.
• 87K 3/8" Collar Without Fittings (A-2839) — pairs with the gland to maintain proper tube retention and sealing preload.

Service tip: Always inspect mating cone seats, glands, collars, and port faces when replacing an attenuator tube. Proper alignment is critical on 87K plumbing; forcing the tube into position can create side loading, premature cone wear, and high-pressure leakage.
