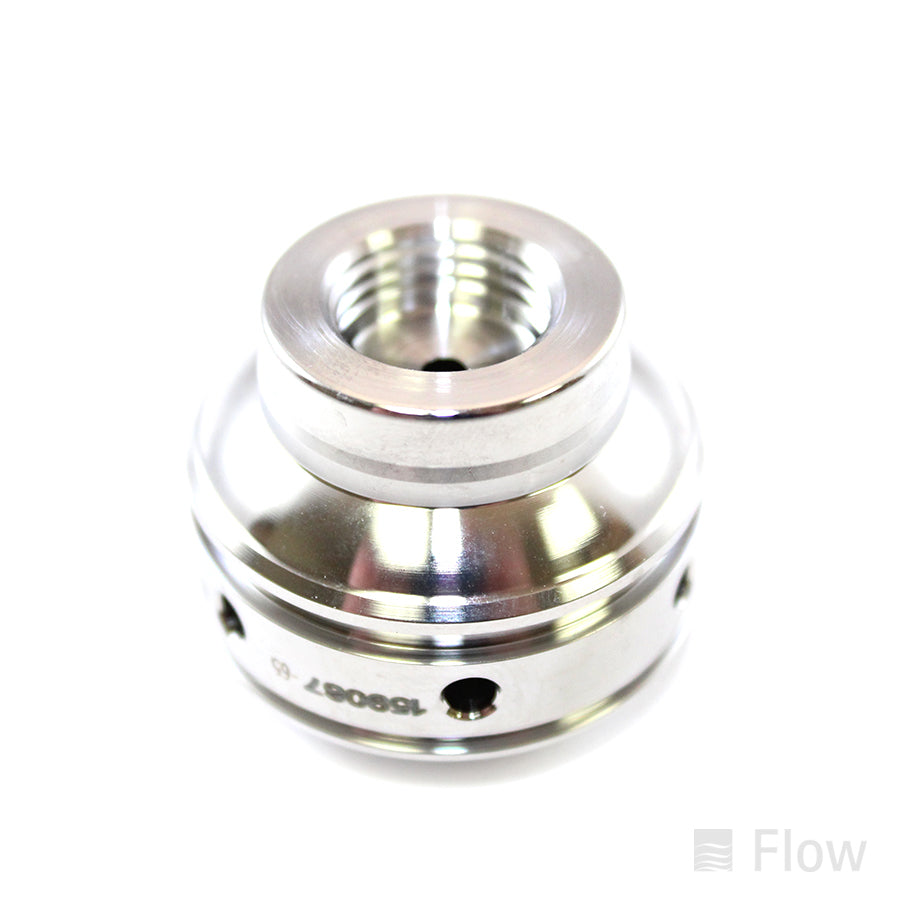

HyplexPrime Check Valve Body

Designed for Flow HyPlex® Prime direct-drive waterjet pumps operating at pressures up to 60,000 psi. This component houses and supports the internal check valve elements responsible for regulating water flow into and out of the high-pressure cylinder during each plunger stroke. Engineered to withstand repeated high-pressure cycling, the check valve body plays a critical role in maintaining pump efficiency and protecting surrounding components from pressure fluctuations and premature wear.

Related Products:

• 60K Eagle Check Valve Assembly (049603-1) — complete check valve assembly for compatible HyPlex Prime direct-drive pumps, providing an alternative to rebuilding individual valve components.
• HyPlex Direct Drive Outlet Poppet (011039-1) — controls high-pressure water discharge and prevents reverse flow during pump cycling.
• HyPlex 55K/Eagle Direct Drive Outlet Poppet Seat (011041-1) — provides the precision sealing surface for the outlet poppet, helping maintain reliable pressure retention.
• Direct Drive Outlet Poppet Guide (011040-1) — maintains proper outlet poppet alignment and movement to support consistent valve operation.
• HyPlex Prime High-Pressure Cylinder (049584-1) — works with the check valve assembly to contain and pressurize water during the direct-drive pumping cycle.

Service tip: Inspect the check valve body's internal bores, poppet seating areas, and sealing surfaces for erosion, scoring, pitting, or cracks whenever servicing the high-pressure pump section. Ensure the system is completely depressurized before servicing and verify compatibility with the specific HyPlex Prime pump configuration.
