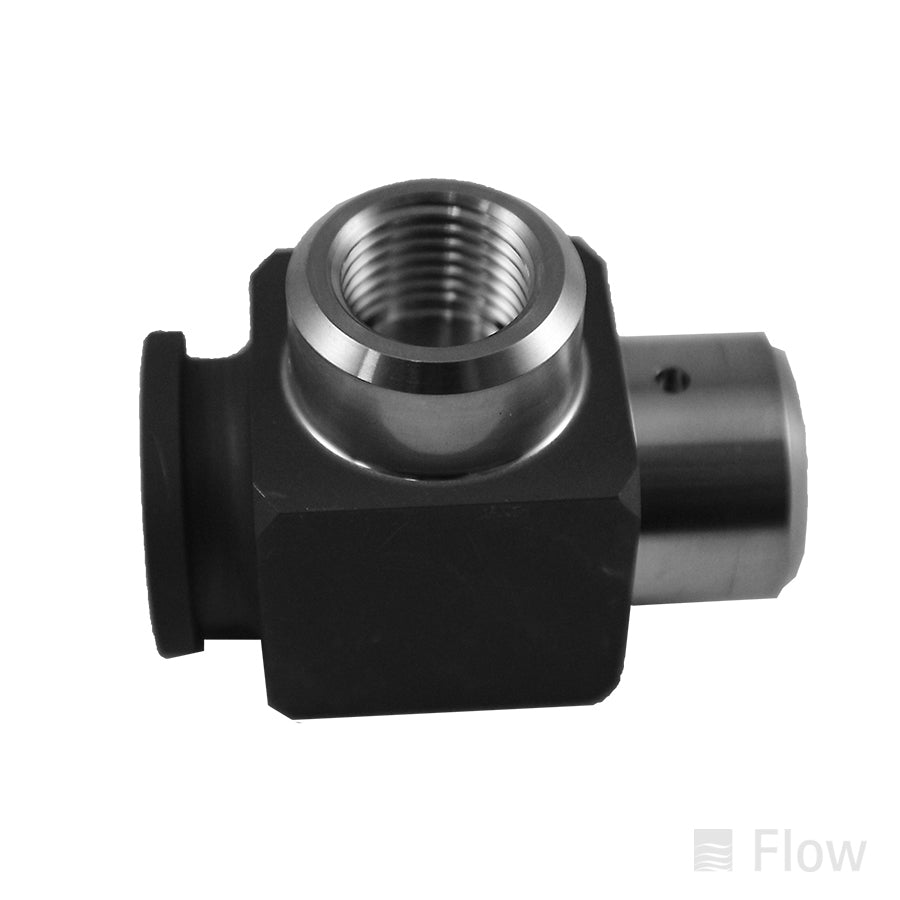

55K Single Axis 90 Degree Swivel Body

The primary pressure-containing housing for the 55K Single Axis 90 Degree Swivel. Its configuration allows the high-pressure water path to change direction while supporting rotational movement of the swivel shaft, helping reduce tubing twist and connection stress as the cutting head moves. Designed for 55,000 psi service.

Related Products:

• 55K 1/4 Inch 90 Degree Single Axis Swivel Assembly (C-5155-1) — the complete 55K single-axis swivel assembly associated with this style of 90-degree swivel body.
• 60K Single Acting Swivel Shaft (B-7159-1) — replacement swivel shaft used in the C-5155-1 assembly to restore sealing clearances and smooth rotational movement.
• Swivel Repair Kit for C-5152 (B-7447-1) — provides service components for a closely related Flow single-axis swivel configuration.
• 1/4 Inch 90 Degree Single Axis Swivel Assembly (010141-1) — another Flow 90-degree single-axis swivel configuration for applications requiring controlled cutting-head articulation.
• 60K Swivel Body Single Axis (C-5500-1) — a related single-axis swivel housing designed for Flow 60K swivel systems.

Service tip: Inspect the swivel body bore, shaft contact surfaces, and sealing areas for scoring, erosion, corrosion, or deformation whenever the assembly is rebuilt. Damage to these surfaces can cause leakage or excessive rotational resistance even after new seals are installed. Confirm smooth movement and leak-free operation at reduced pressure before returning the swivel to full operating pressure.
