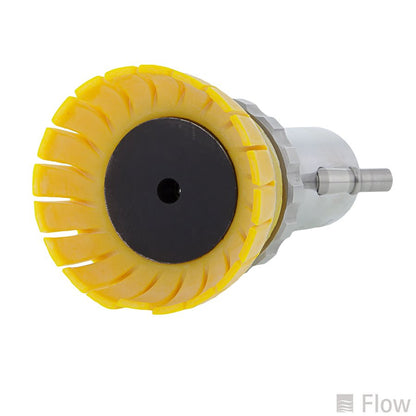

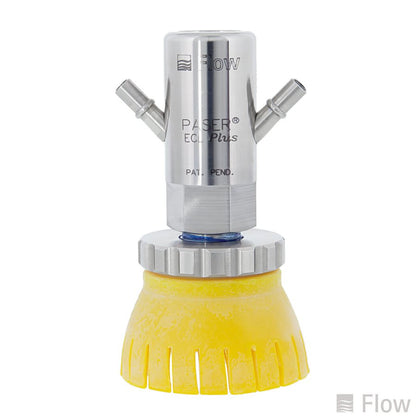

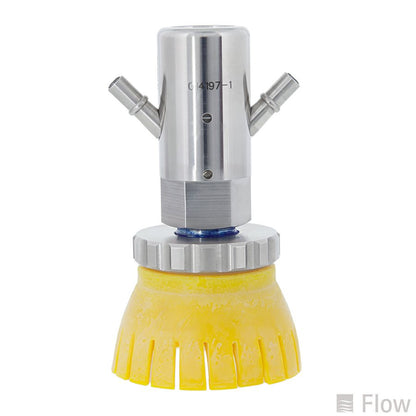

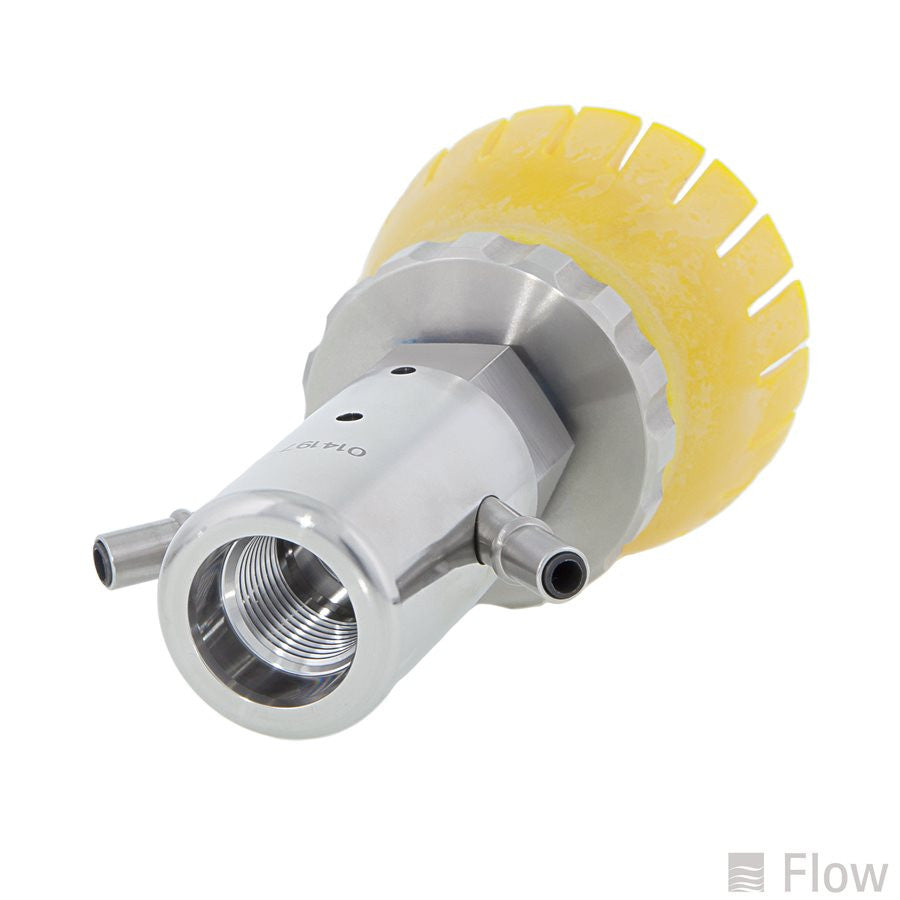

60K Cutting Head Assembly

The Cutting Head Assembly — 60K is a fully integrated high pressure cutting component designed for precision waterjet machining at 60,000 psi. Built for durability and alignment accuracy, this assembly combines the orifice, mixing chamber, and nozzle body into a compact, serviceable unit that maintains optimal stream coherence and abrasive mixing. Engineered for compatibility with Flow® waterjet systems, it ensures consistent cutting performance, minimal downtime, and long service life in demanding production environments.

Related products:

• Upgrade Kit — Cutting Head, Paser® 4 60K (046145-5) — includes wear components to refresh cutting head performance and restore precision alignment.
• Orifice — Paser® 4 (041759-xx) — delivers accurate jet formation and maximizes cutting efficiency.

• Nut, Mixing Tube — Paser® ECL Stainless Steel (014241-1) — secures the mixing tube for stable, repeatable jet alignment.
• Collar, Nozzle Body 5/8"-18 (710869-1) — provides reliable sealing between nozzle components for long-term durability.

Service notes: Always inspect orifice alignment and sealing surfaces before installation. For peak performance, replace orifice and mixing tube components together during cutting head maintenance. Proper torque and clean assembly surfaces are essential to prevent leaks and maintain consistent cutting quality.
