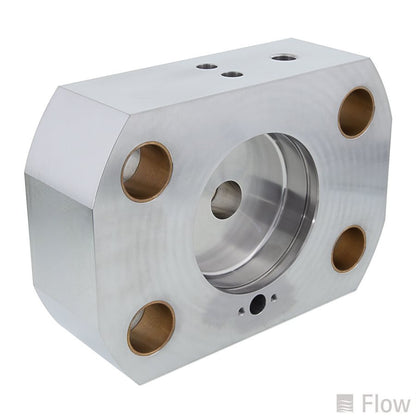

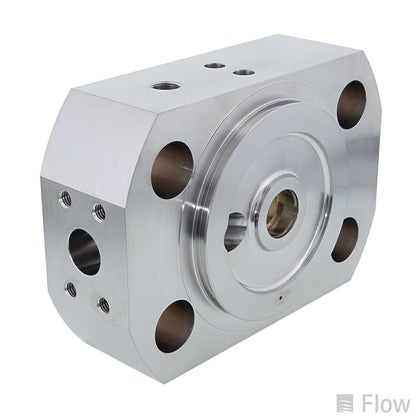

87K Intensifier End Bell Assembly Left Hand

The 87K Intensifier End Bell Assembly Left Hand is an OEM Flow replacement end bell for PH2 HyperJet® intensifier assemblies operating in 87,000 psi applications. This component supports the end of the intensifier assembly and helps maintain proper alignment, clamping force, and structural integrity across the low-pressure and high-pressure sections. It is commonly replaced during major intensifier rebuilds when end bell wear, thread damage, mounting damage, or misalignment could affect pump reliability and pressure stability.

Related products:

• 87K Intensifier End Bell Assembly Right Hand (020074-1) — matching right-hand end bell for paired PH2 intensifier service.
• 87K Intensifier Low-pressure Cylinder (019975-1) — mates with the end bell and supports the hydraulic side of the intensifier.
• 87K High-pressure Cylinder (020592-1) — commonly inspected or replaced during major 87K intensifier rebuilds.
• 87K HyperJet Intensifier Check Valve Assembly (020071-1) — helps maintain stable high-pressure water flow and prevents backflow during intensifier cycling.
• 87K HyperJet Intensifier Seal Carrier Cartridge (040015-1) — restores high-pressure sealing performance on the plunger side of the intensifier.

Service note: When replacing an end bell, inspect the mating cylinder, tie rods, threads, seals, and alignment surfaces before reassembly. Uneven torque, damaged threads, or contamination between mating faces can reduce component life and contribute to leakage or pressure instability after startup.
