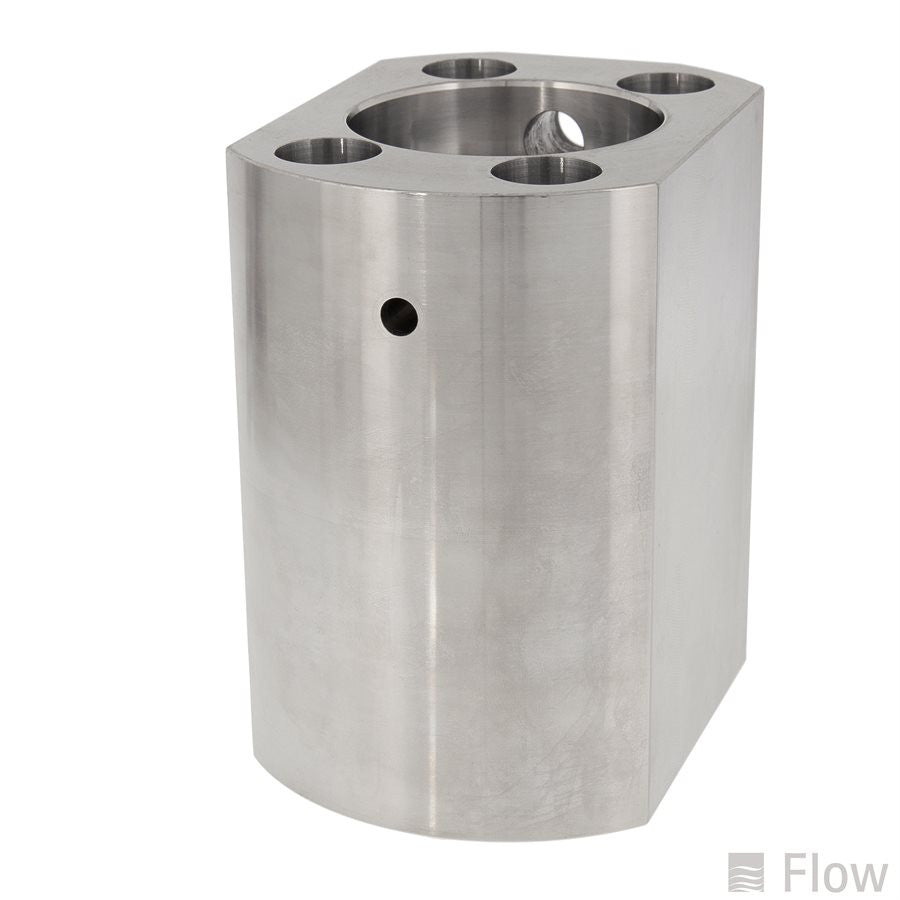

55K Direct Drive End Cap

An OEM end-cap or Flow Eagle-style 55,000 psi direct-drive pump assemblies. It supports the high-pressure cylinder and sealing stack at the end of the pump section, helping maintain proper alignment, compression, and containment during repeated pressure cycling. Replace the end cap when wear, corrosion, thread damage, cracking, or sealing-surface damage prevents reliable high-pressure operation.

Related products:

• Direct Drive End Cap Static Seal 1 Inch ID (011043-1) — seals the end-cap interface and should be inspected whenever the end cap is removed.
• 55K End Cap Tie Rod Eagle (011034-1) — secures the end-cap assembly and helps maintain proper clamping force.
• 55K High-Pressure Cylinder (013932-1) — works directly with the end cap in the Eagle-style high-pressure pump section.
• Direct Drive Seal Carrier Assembly (013933-1) — supports the sealing components around the reciprocating plunger.
• 55K Direct Drive High-Pressure Maintenance Kit (015606-1) — includes common wear components for servicing 55K direct-drive high-pressure assemblies.

Service tip: Inspect the end-cap sealing face, tie rods, cylinder interface, and static seal during installation. Proper alignment and clean sealing surfaces are critical for preventing leaks and avoiding uneven load on the high-pressure pump section.
