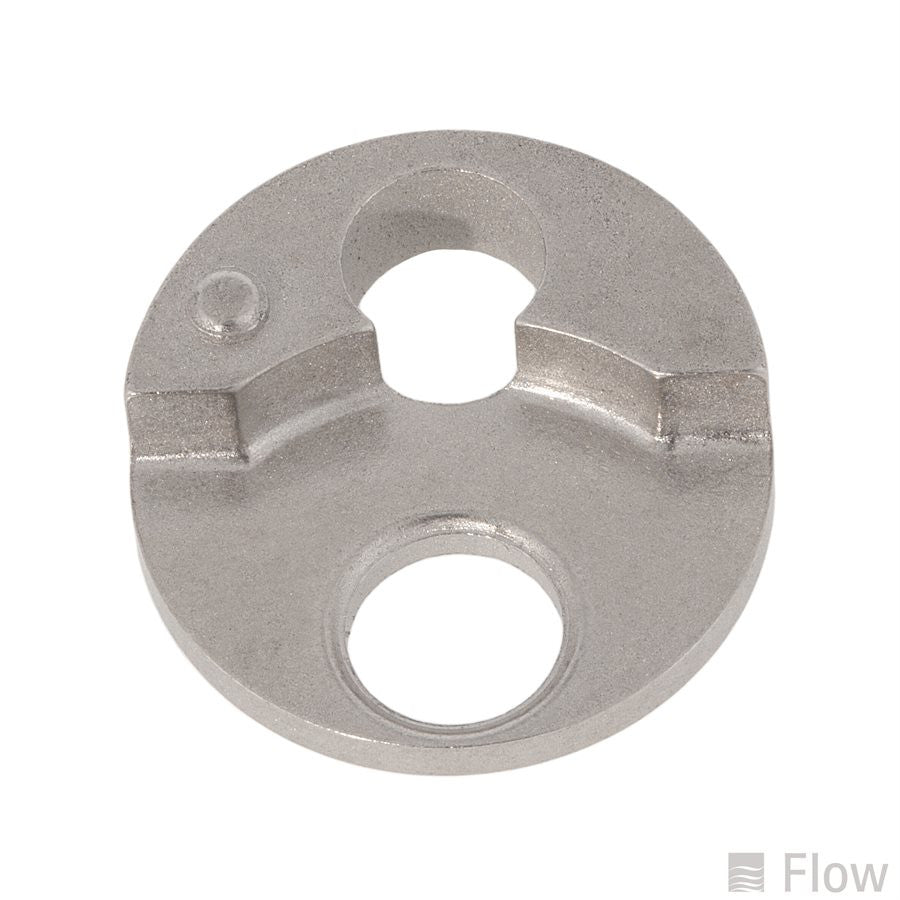

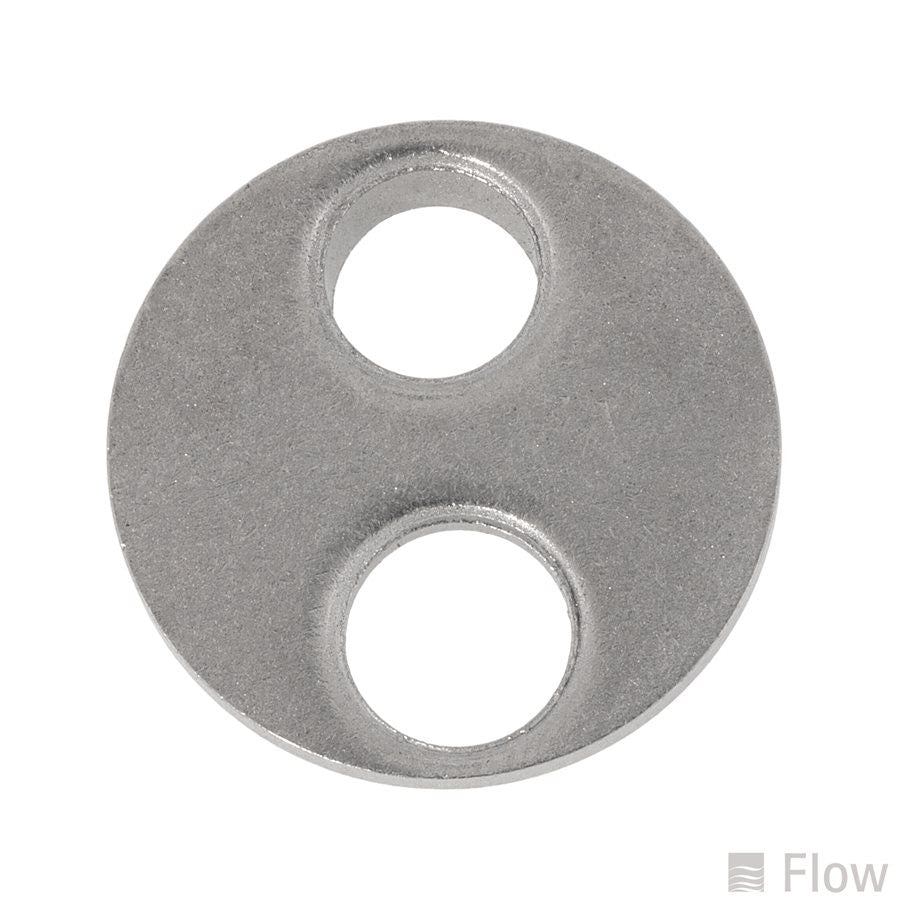

Check Valve Support Assembly

Used to center and stabilize the inlet check valve within the high pressure cylinder assembly. Manufactured from corrosion resistant stainless steel, this guide ensures the poppet moves freely and seats accurately, promoting consistent water intake during each intensifier stroke. By maintaining perfect valve alignment and preventing side loading, it helps extend the service life of the valve seat, poppet, and seals while maintaining consistent 60K system performance.

Related products:

• Plunger Assembly — Intensifier 60K (010253-1) — drives the inlet check valve system to generate consistent pressure output.


Service notes: Replace the inlet check valve guide whenever signs of wear, scoring, or misalignment appear to maintain optimal sealing and valve motion. Always clean and inspect the valve bore and mating components before installation. Replacing both inlet and outlet valve assemblies simultaneously ensures balanced operation and long-term reliability.
