HyPlex® Major Maintenance Kit

An OEM overhaul pack that replaces every high-pressure wear part in Flow’s HyPlex Prime and HyPlex Hybrid pumps, restoring full 55,000 psi output in a single shutdown. Flow recommends this major kit at the end of each 1 000- to 2,000-hour service cycle or whenever rod pack leakage, pressure loss, or check valve chatter appears.

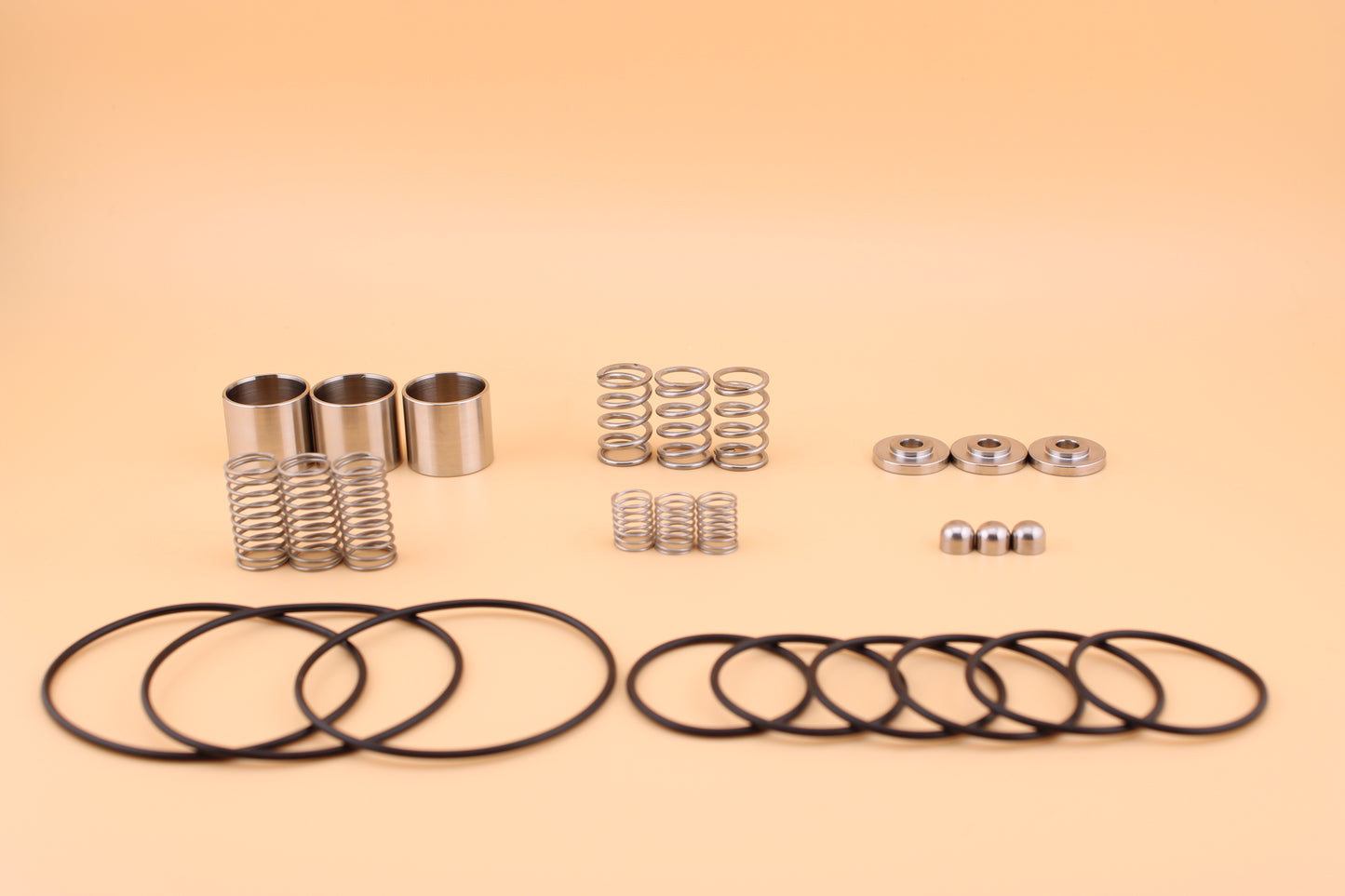

Kit contains:

• 3x 5/16" Dynamic Seal (011051-1)
• 3x Rod Seal (A-00621-33)
• 3x Check Valve Poppet (011042-1)
• 3x Direct Drive Outlet Poppet Guide (011040-1)
• 3x Direct Drive Outlet Poppet (011039-1)
• 3x Direct Drive Outlet Poppet Seat (011041-1)
• 1x Poppet/Seat Assembly (042145-1)
• 3x 70 Durometer Black Nitrile rubber O-ring (A-0275-033)
• 6x 70 Durometer Black Nitrile rubber O-ring (A-0275-025)
• 3x Direct Drive Seal Carrier Assembly (013933-1)
• 3x Direct Drive End Cap Static Seal 1" ID (011043-1)
• 3x 55K High-pressure Cylinder (013932-1)
• 3x 55K Eagle Check Valve Body (013383-1)
• 3x Direct Drive Filler Tube Sleeve (011350-1)
• 3x Direct Drive Rod seal (A-00720-31)
• 3x Compression Spring (A-9223)
• 3x Disogrin High Resiliency O-ring (A-0290-010)
• 3x 70 Durometer Black Nitrile rubber O-ring (A-0275-015)
• 3x Manifold Back-up Ring (006760-1)
• 3x UHMW Tie Rod Spacer Ring (014172-1)
• 1x Food Grade O-ring Grease (A-4689)

• 2x Anti-Seize Lubricant (A-20386-1)
• 1x 55k psi Hyplex High Pressure Assembly (012306-DWG)
• 3x Compression Spring (A-12219)
• 3x 70 Durometer Black Nitrile rubber O-ring (A-0275-119)
• 1x 70 Durometer Black Nitrile rubber O-ring (A-0275-120)
• 3x HyplexPrime Ceramic Plunger Assembly (011045-1)
• 3x Compression Spring (A-12217)
• 3x Compression Spring (A-12218)
