Rated Pressure: 55k
Spares/Maint Kits: Maintenance Kit

HyPlex Minor Maintenance Kit

Name Qty Description

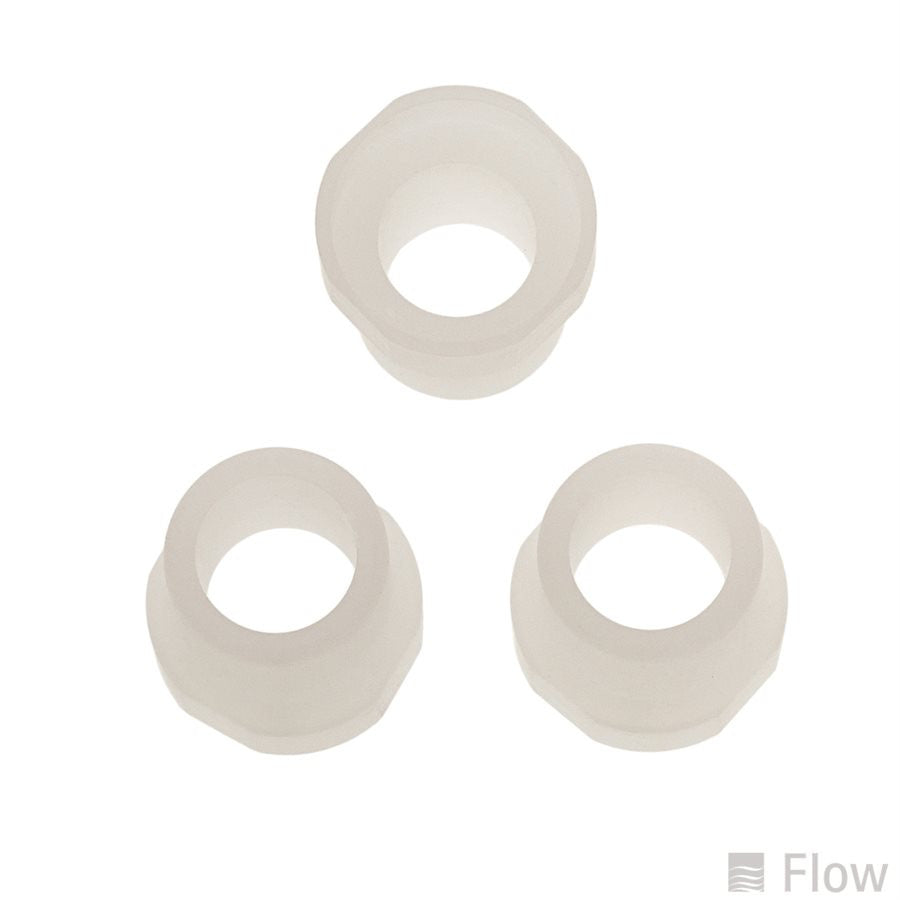

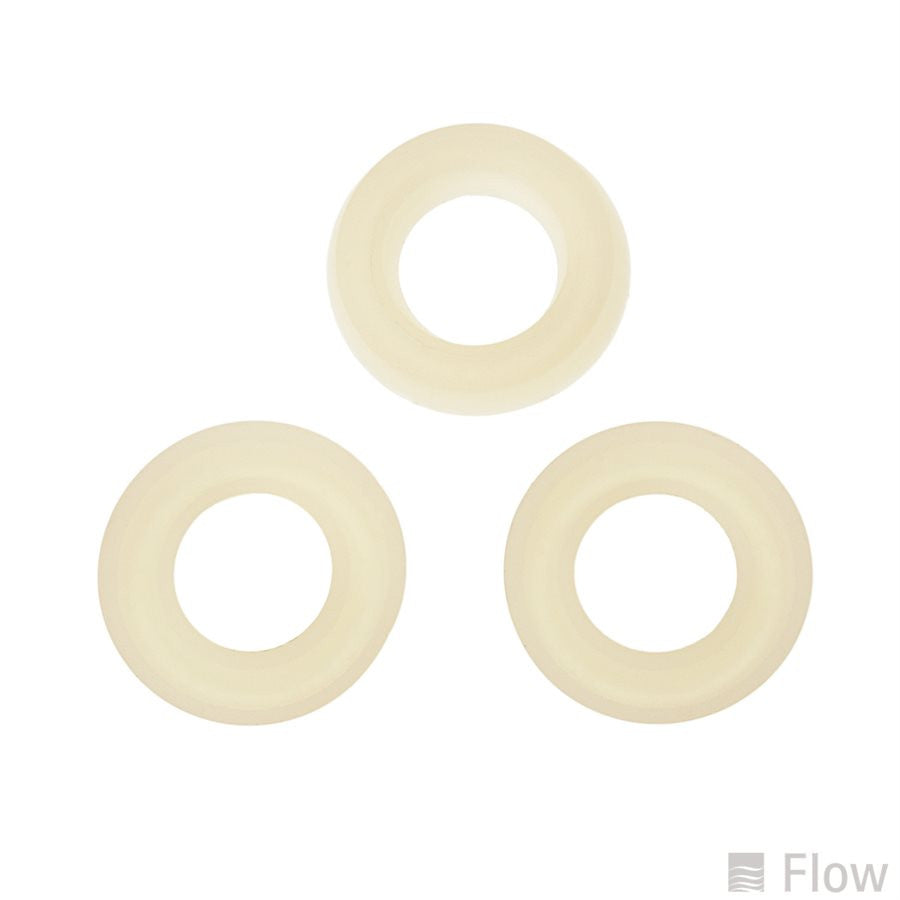

011051-1 3 SEAL;DYNAMIC;EAGLE;5/16 ID;HDS WHITE

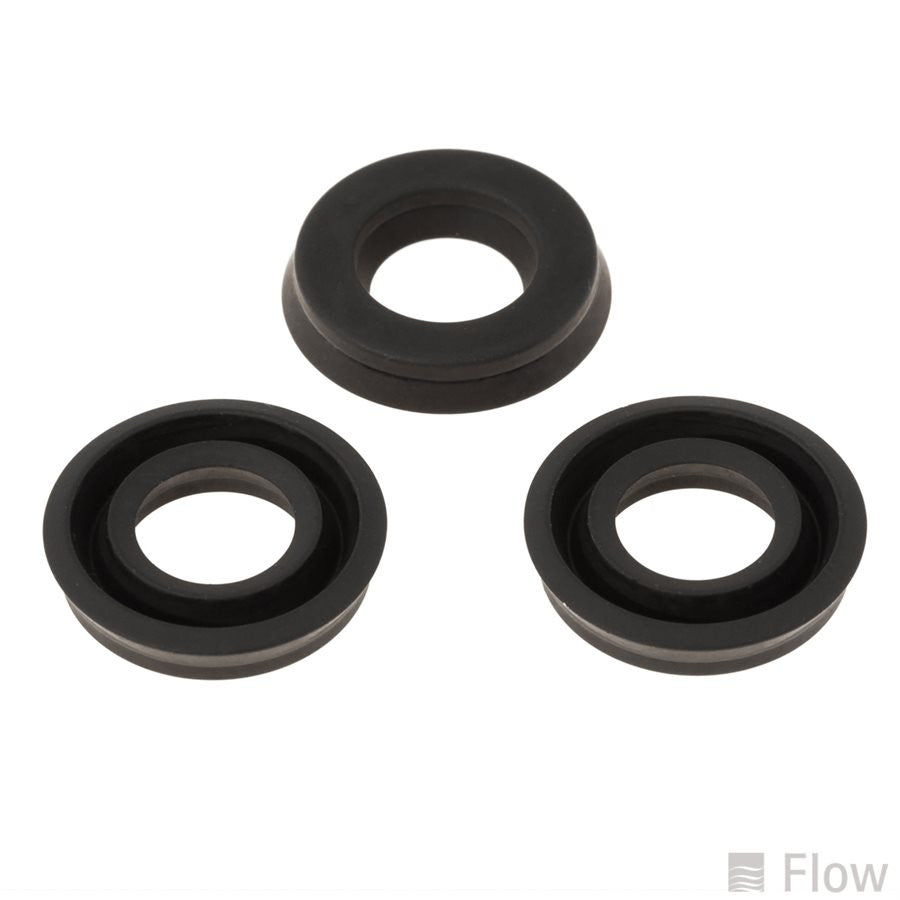

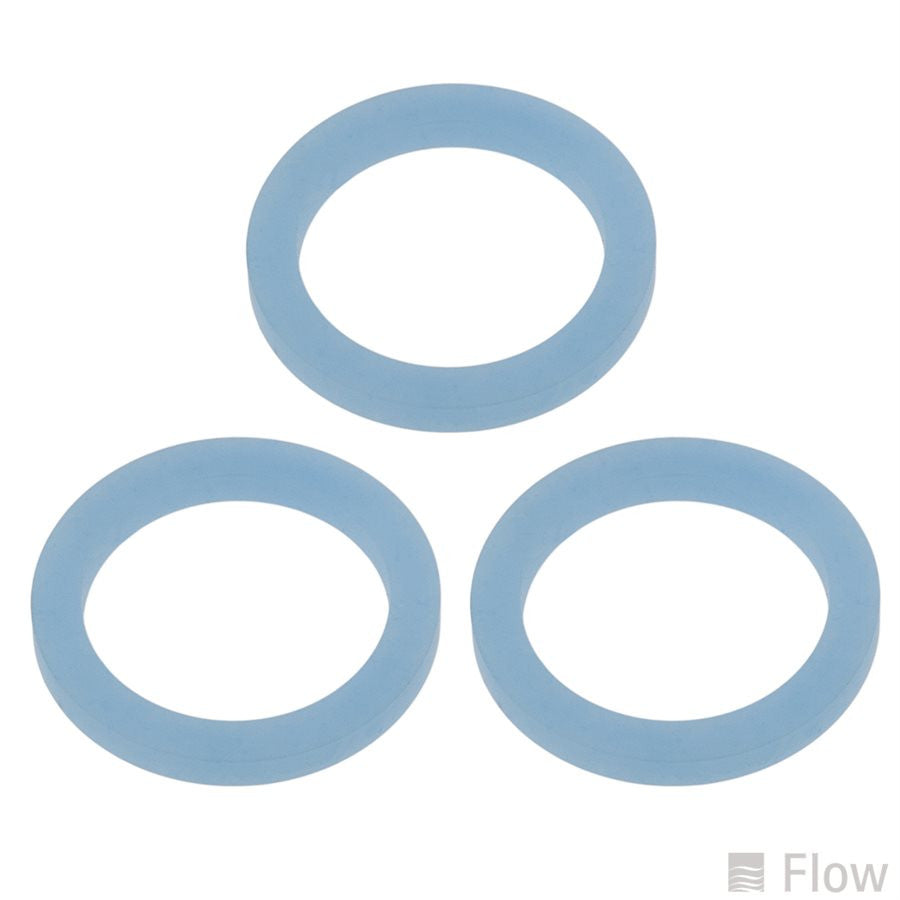

A-00621-33 3 SEAL;ROD;NA;DISOGRIN;7/16 ID;11/16 INCH OD;1/8 INCH
011042-1 3 POPPET;INLET;CHECK VALVE;EAGLE;STAINLESS STEEL

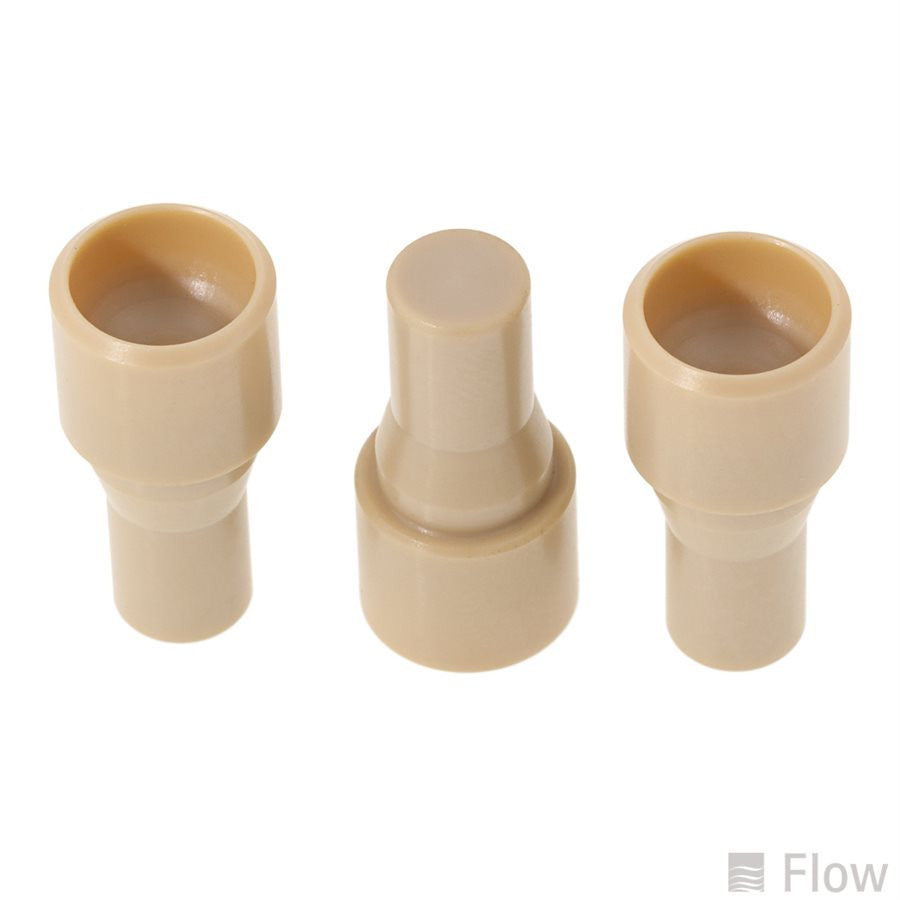

011040-1 3 GUIDE;NA;OUTLET POPPET;CHECK VALVE;EAGLE;NA

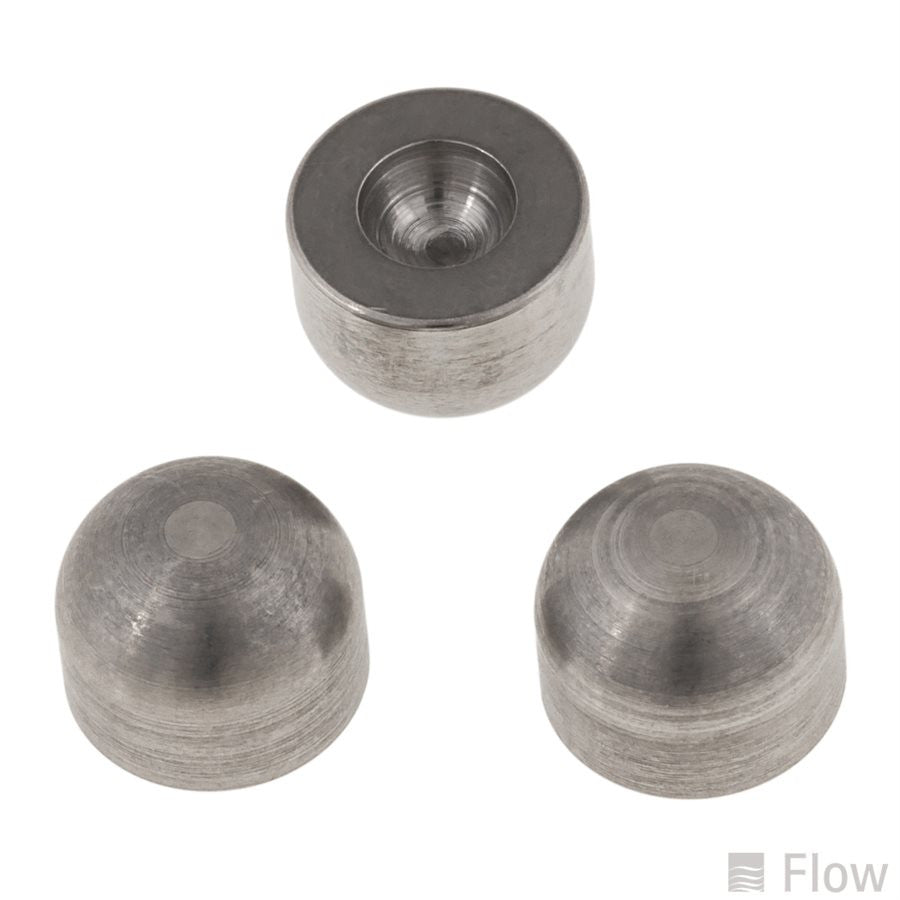

011039-1 3 POPPET;OUTLET;CHECK VALVE;HYPLEX;STAINLESS STEEL

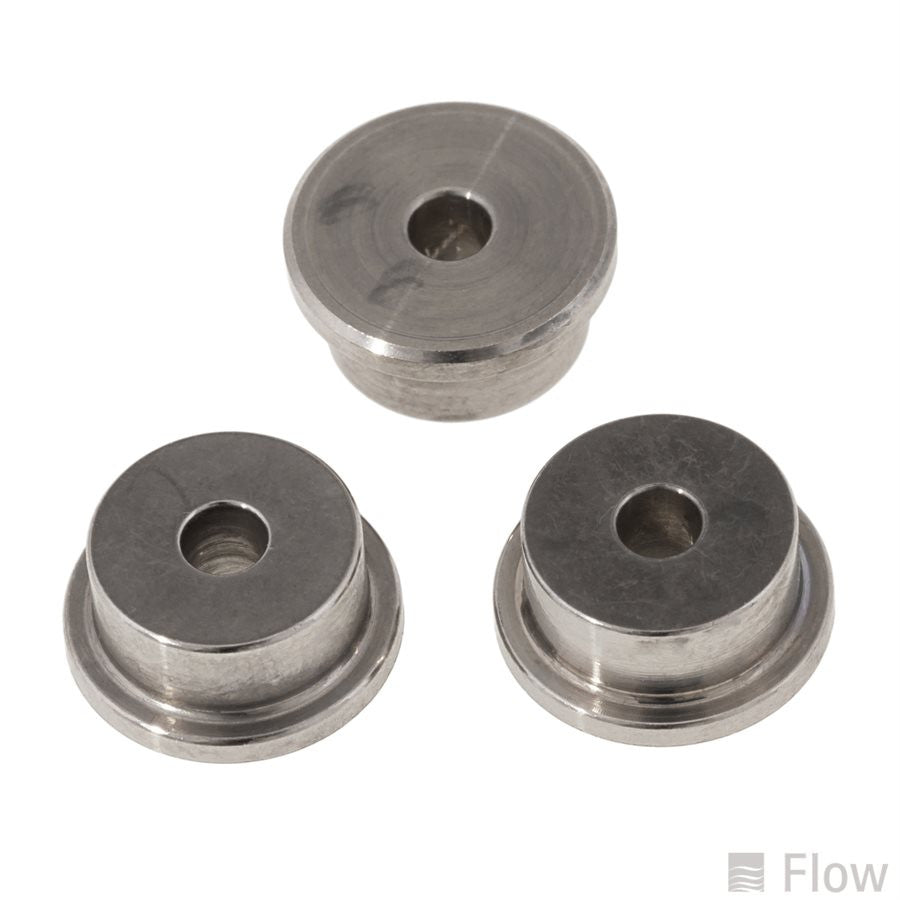

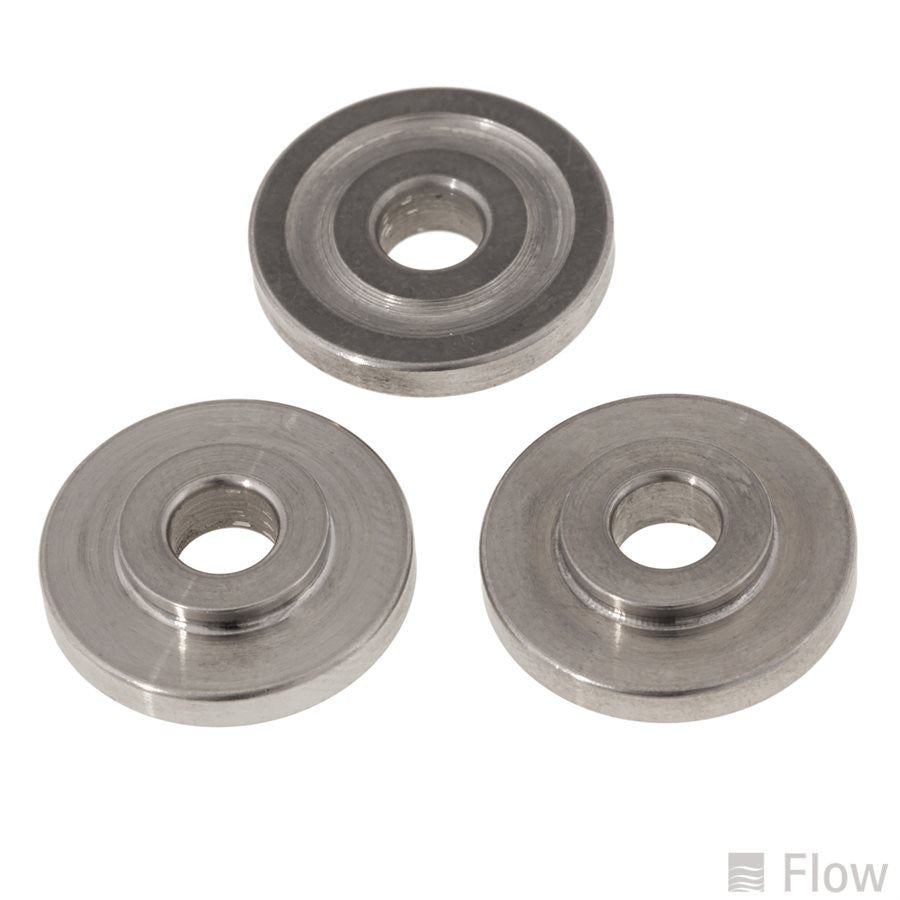

011041-1 3 SEAT;OUTLET;POPPET;EAGLE;STAINLESS STEEL
042145-1 1 POPPET/SEAT ASSEMBLY;PRESSURE CONTROL VALVE;HYPLEX HYBRID

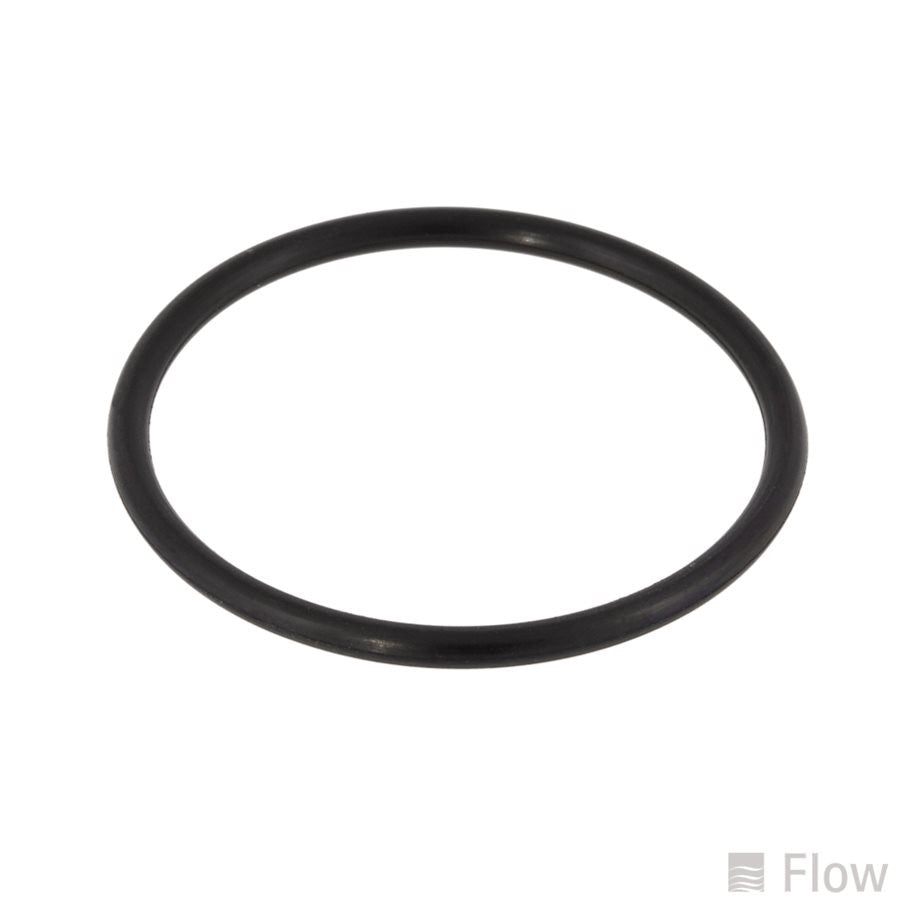

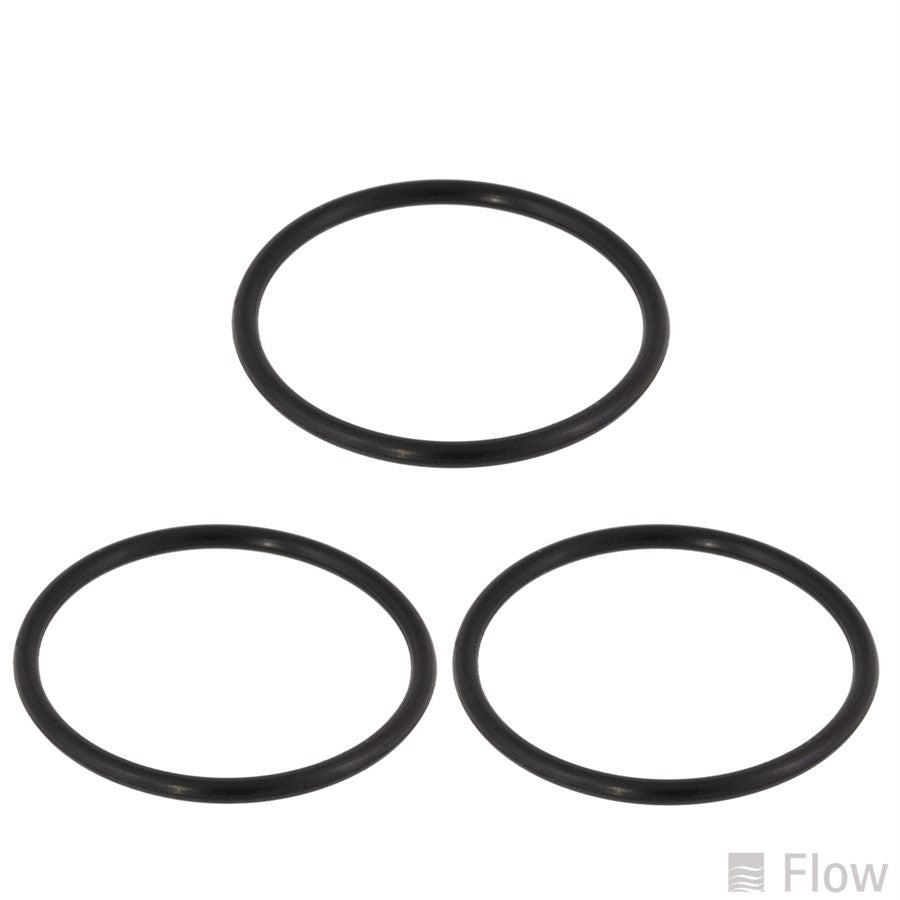

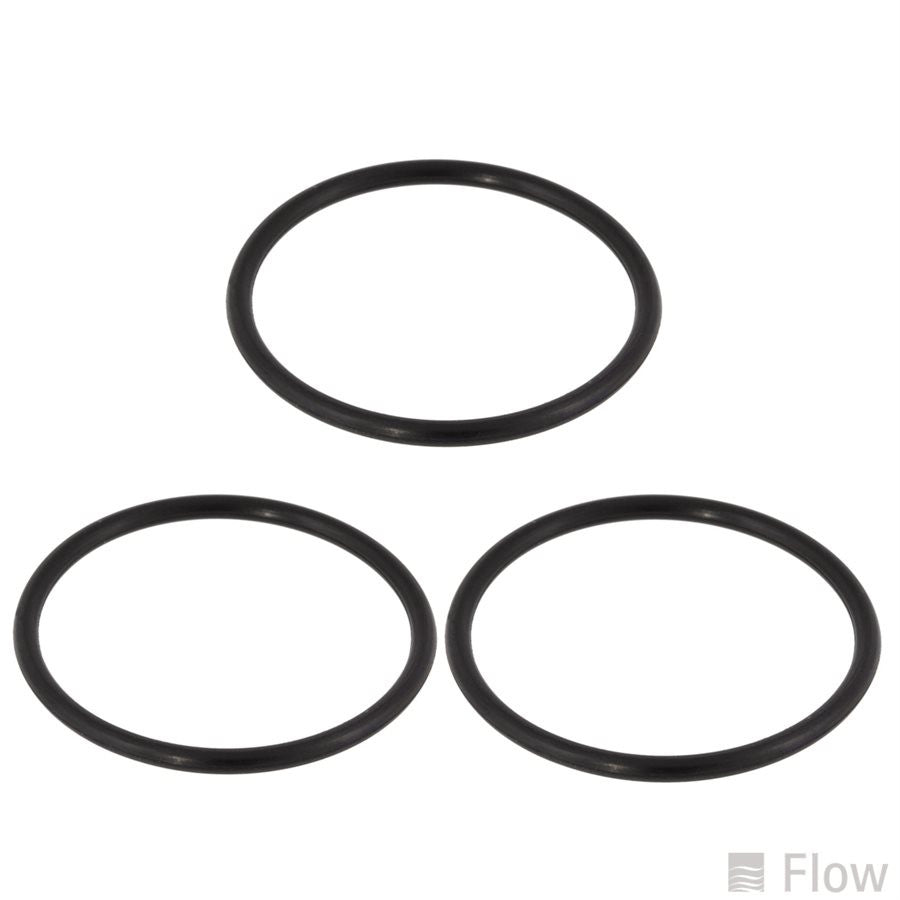

A-0275-033 3 O-RING;BUNA-N;70 (SHORE A);-033

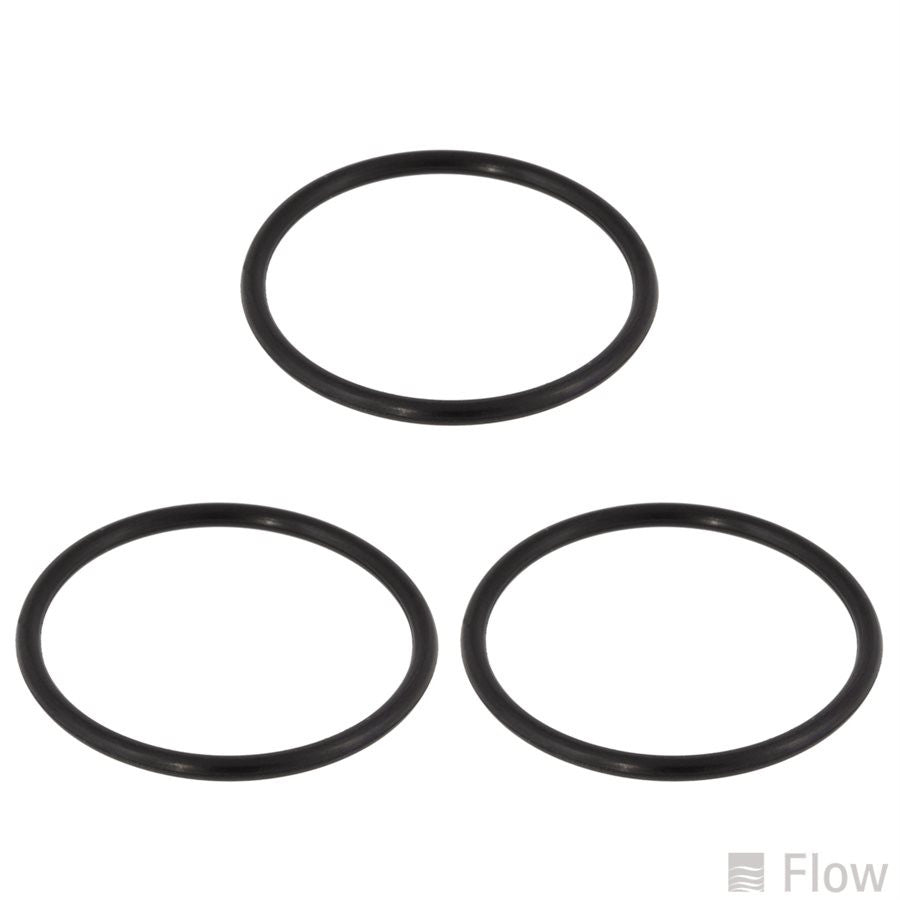

A-0275-025 3 O-RING;BUNA-N;70 (SHORE A);-025
A-1903 1 EMERY PAPER;320 GRIT;WITH ADHESIVE BACK

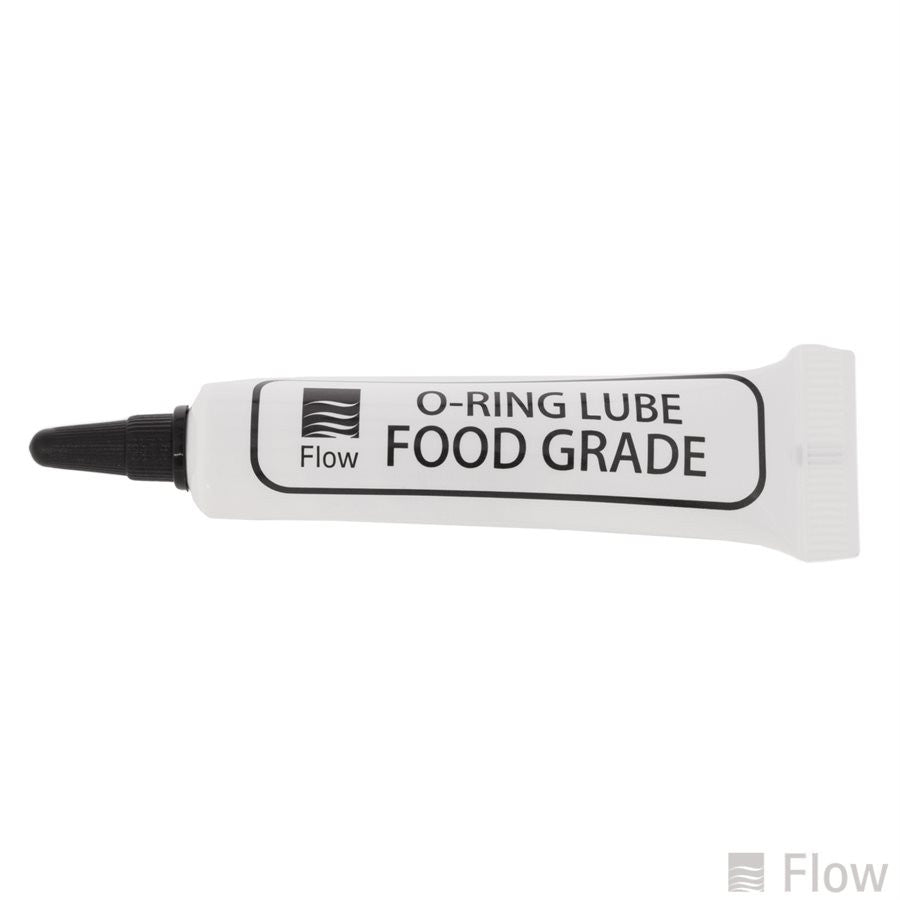

A-4689 1 GREASE;FOOD GRADE;1/4 OUNCE TUBE
SB-0168 1 SB;INSTALLING HYPLEX MINOR MAINT. KIT

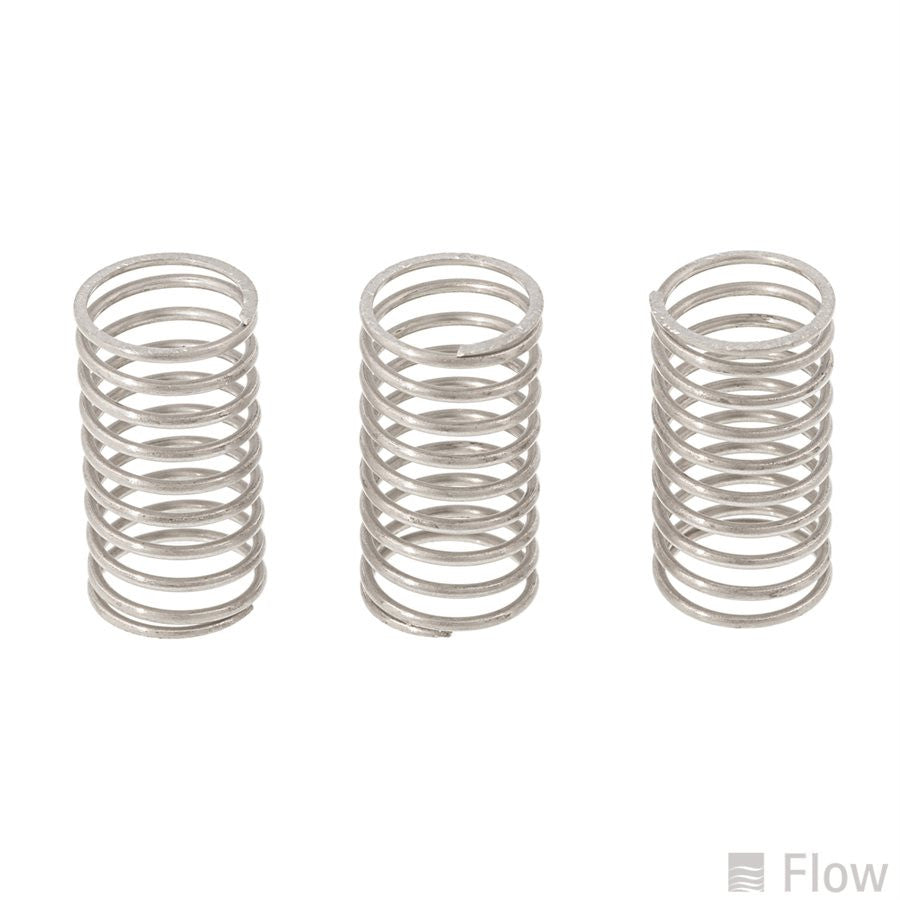

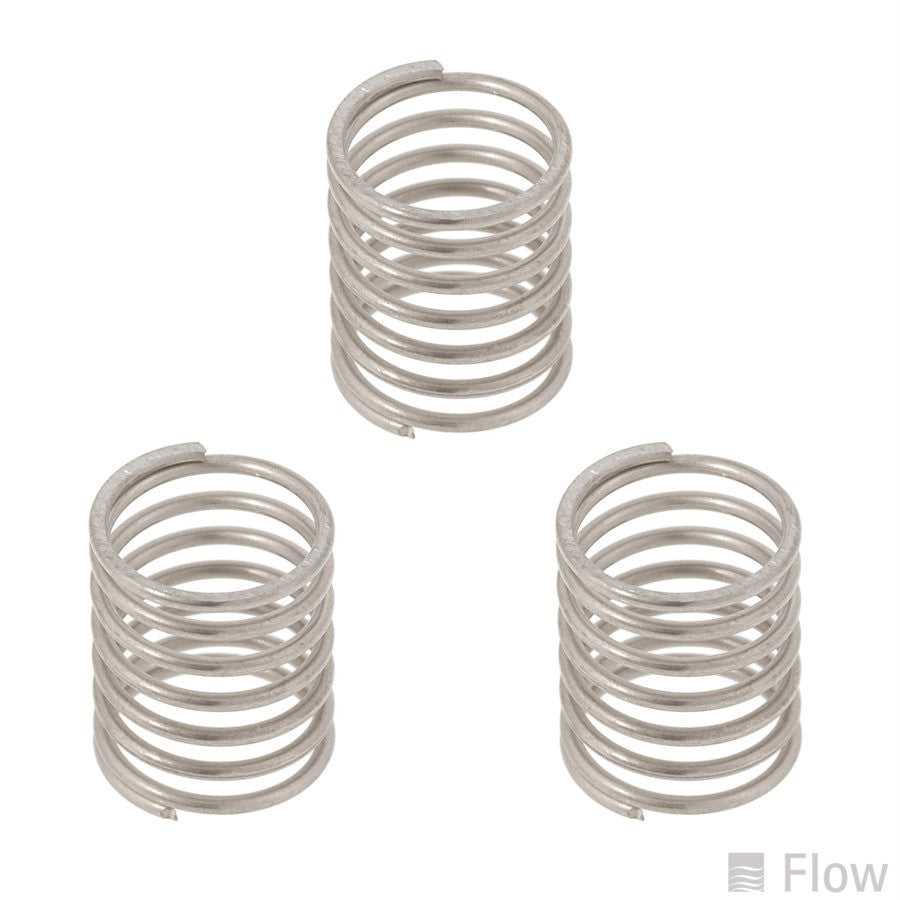

A-9223 3 SPRING;COMPRESSION;STAINLESS STEEL;NONE;.27 ID;.322 OD;.40 INCH;4.0 LBS/IN;CLOSED & GROUND
A-12219 3 SPRING;COMPRESSION;STAINLESS STEEL;NONE;.352 ID;.42 OD;.81 INCH;3.7 LBS/IN;CLOSED & GROUND

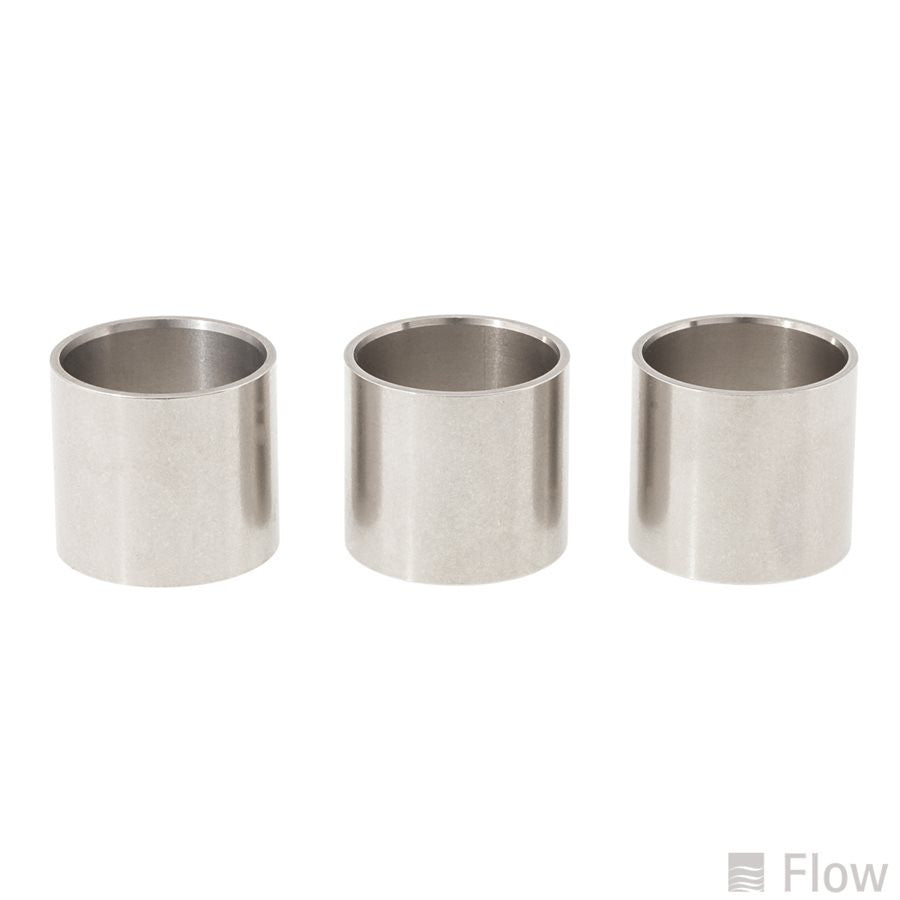

011350-1 3 SLEEVE;NA;FILLER TUBE;EAGLE
A-20386-1 2 LUBRICANT;ANTI-SEIZE;NA;5 GRAMS
012306-DWG 1 HIGH PRESSURE ASSEMBLY;55 KSI HYPLEX;NA;NA
A-00720-31 3 SEAL;ROD;NA;NITRILE;5/16 ID;9/16 OD;1/8 INCH

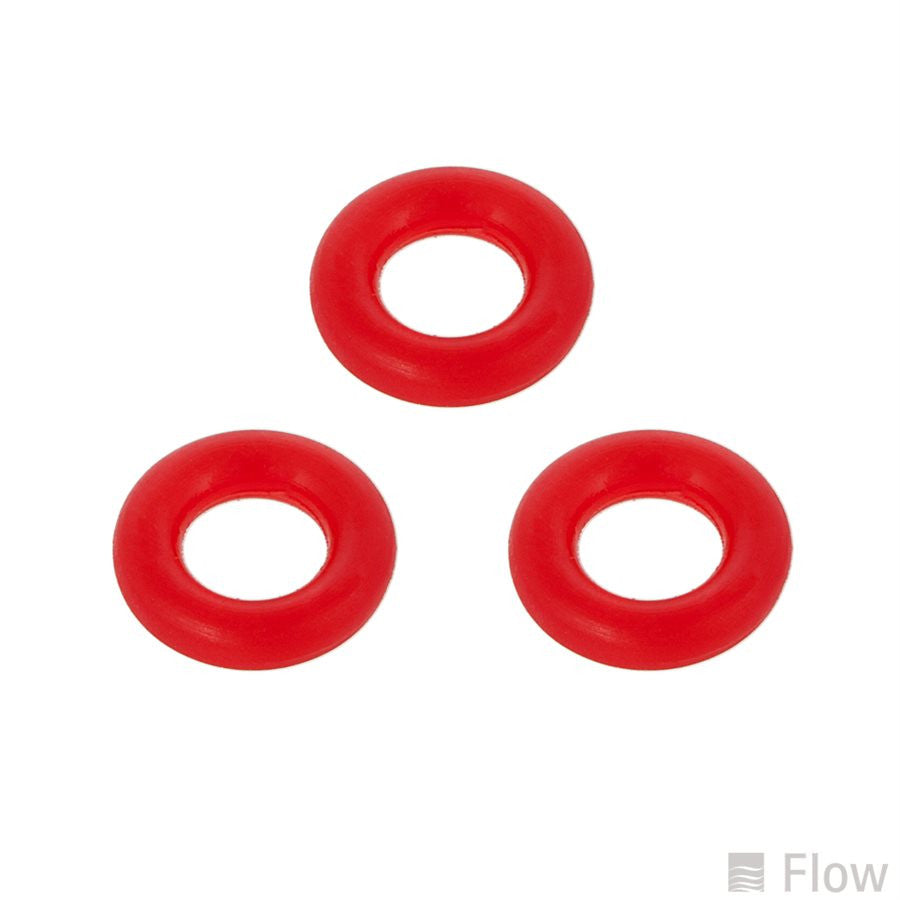

A-0275-119 1 O-RING;BUNA-N;70 (SHORE A);-119
A-0275-120 1 O-RING;BUNA-N;70 (SHORE A);-120
    Pump Type
  • HyPlex
  • JetPlex
 Each

Suggested Part

HyPlex Major Maintenance Kit

HyPlex Major Maintenance Kit

Engineering Title(s):

  • 712101-1: MAINTENANCE KIT;HP;HYPLEX;MINOR
