Mini On/Off Valve Maintenance Kit
Mini On/Off Valve Maintenance Kit
Complete OEM rebuild set for Flow’s DWJ 60k Mini On/Off Valve. Refreshes the hard sealing pair (poppet + seat) and critical elastomers so the jet snaps shut instantly and stays leak-free after thousands of cycles. Use at the first drip or on interval to restore factory shut-off and protect orifices and mixing tubes.

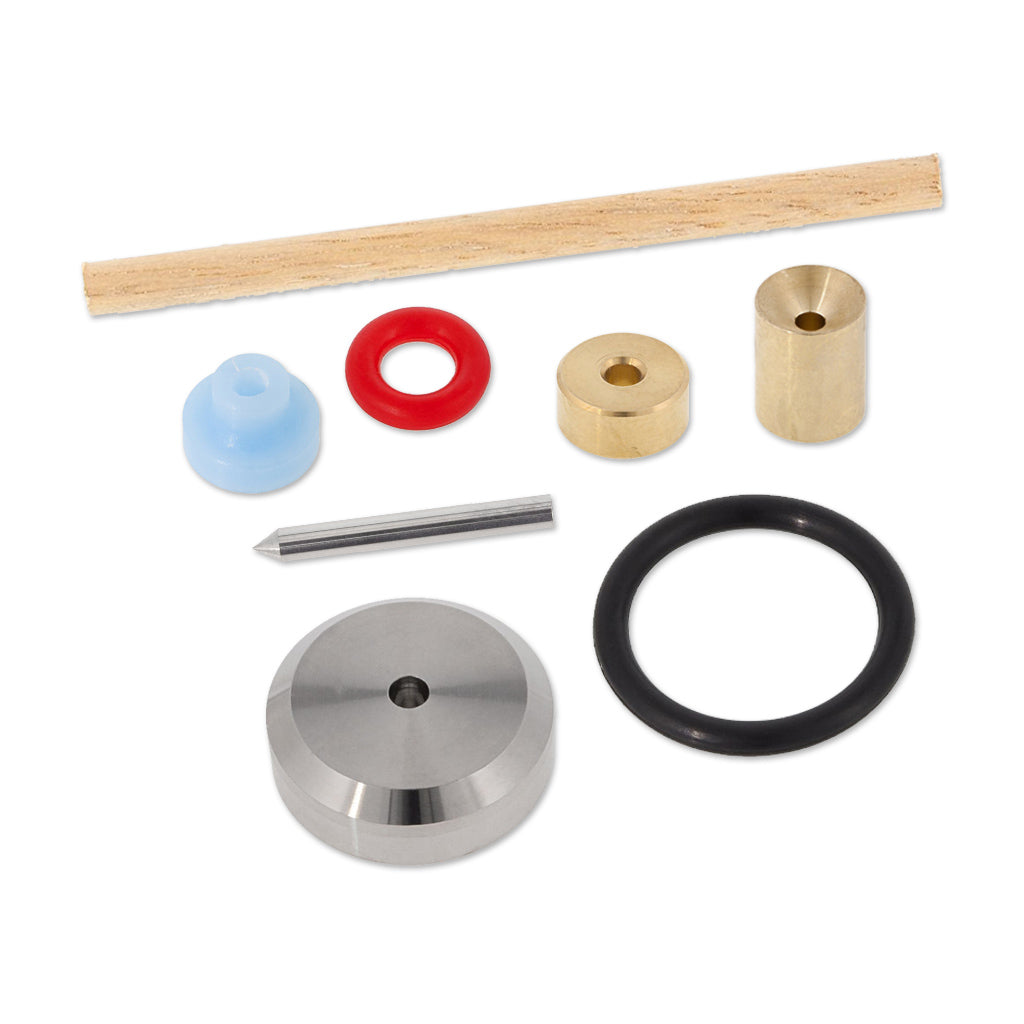

Kit includes:
- 1x On/off Valve Back Up Seal (710819-1)
- 1x LSP Blue Seal (710820-1)

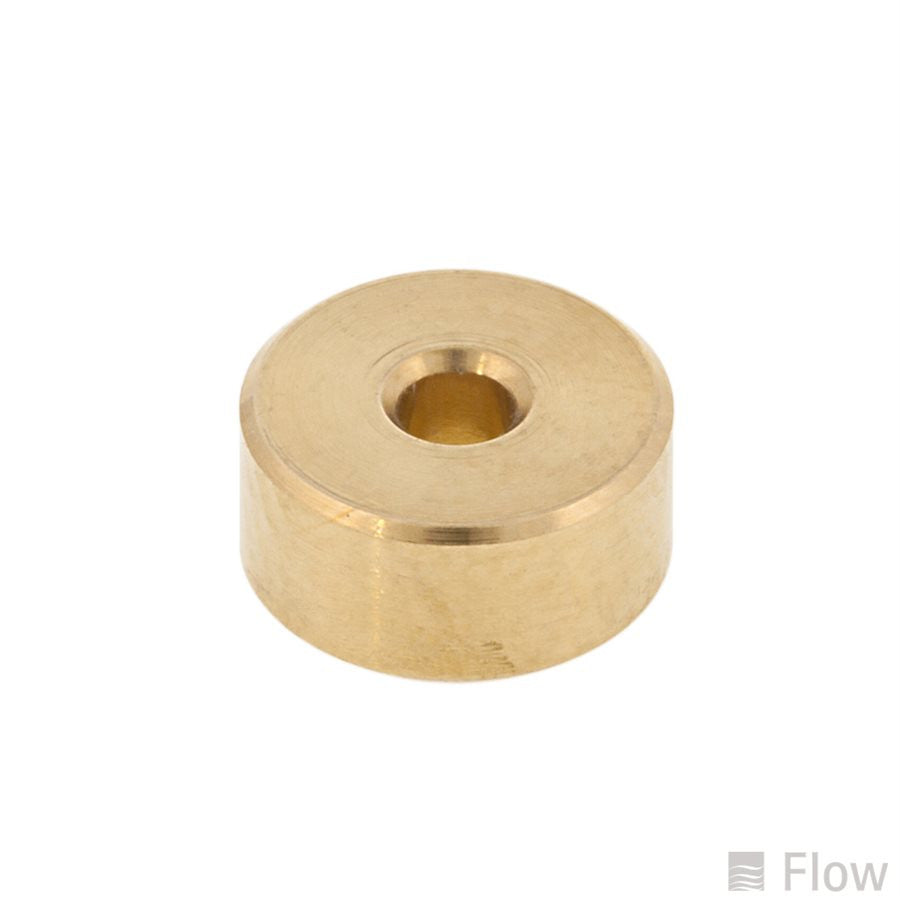

- 1x Bushing (710821-1)
- 1x Stainless Steel Poppet (710822-1)

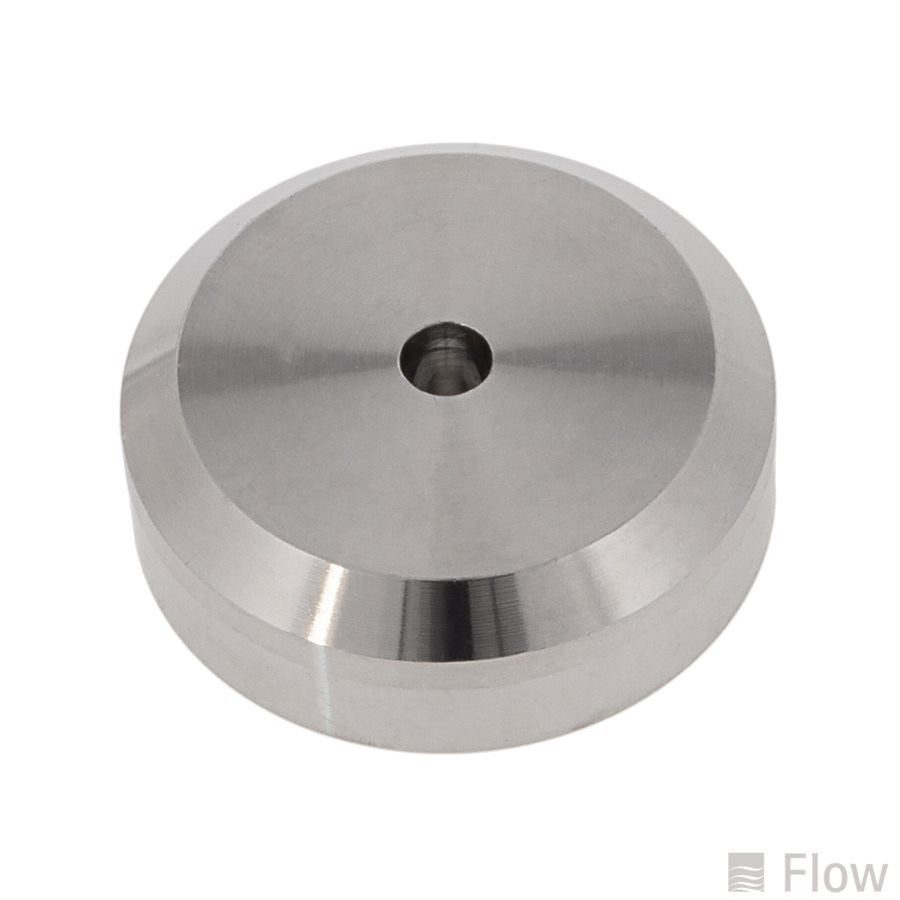

- 1x On/Off Valve Seat (710823-1)
- 1x O-ring (A-0275-014)

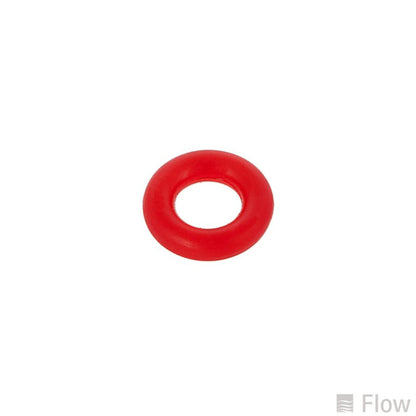

- 1x Red O-ring (B-8075-005)
- 1x Removal Tool (014203-1)
Service tip: after installing the kit, lightly lap if needed, torque to spec, and test shut-off at low and full pressure. Pair with a fresh orifice and mixing tube to maximize cut quality.
