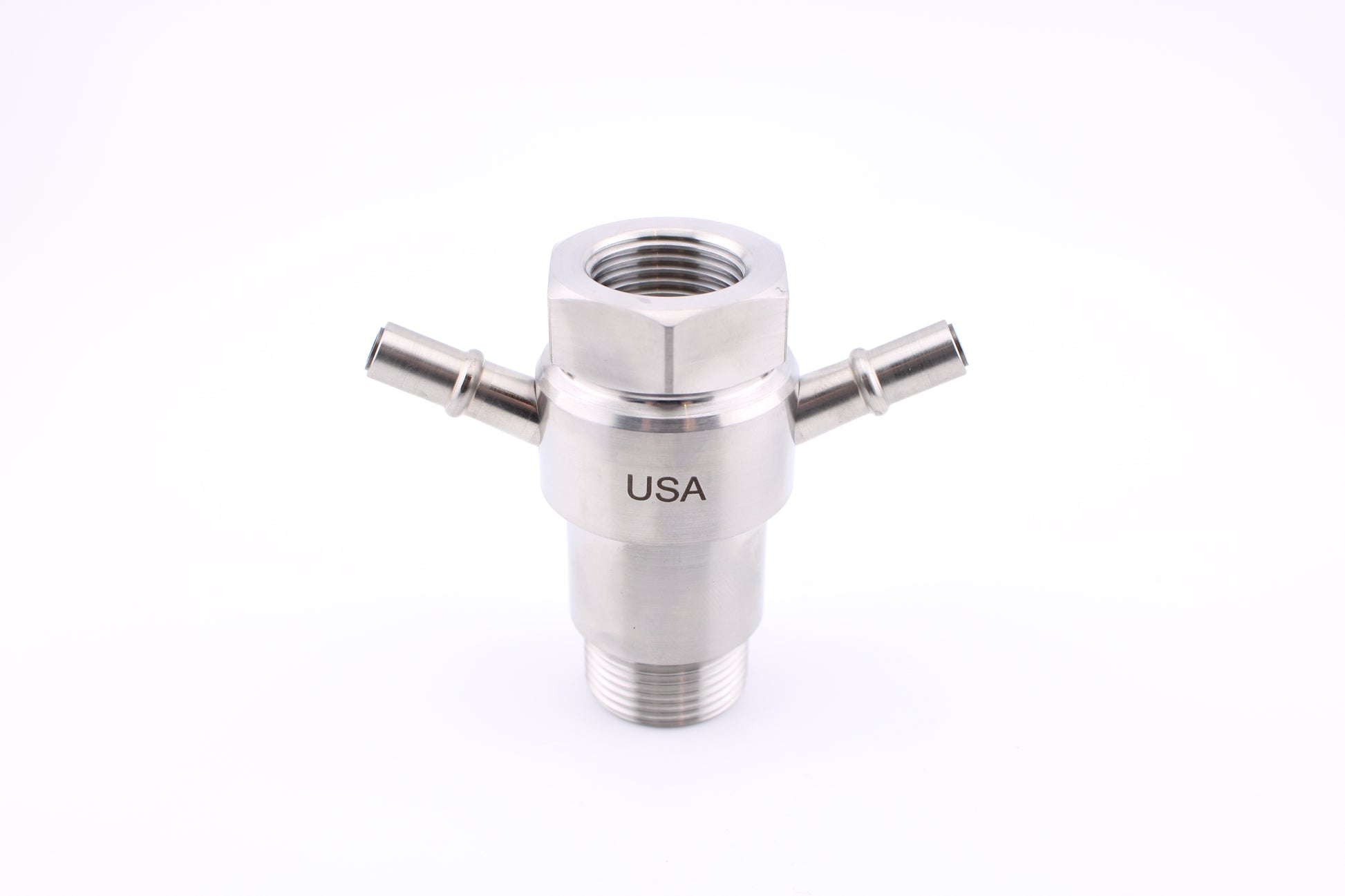

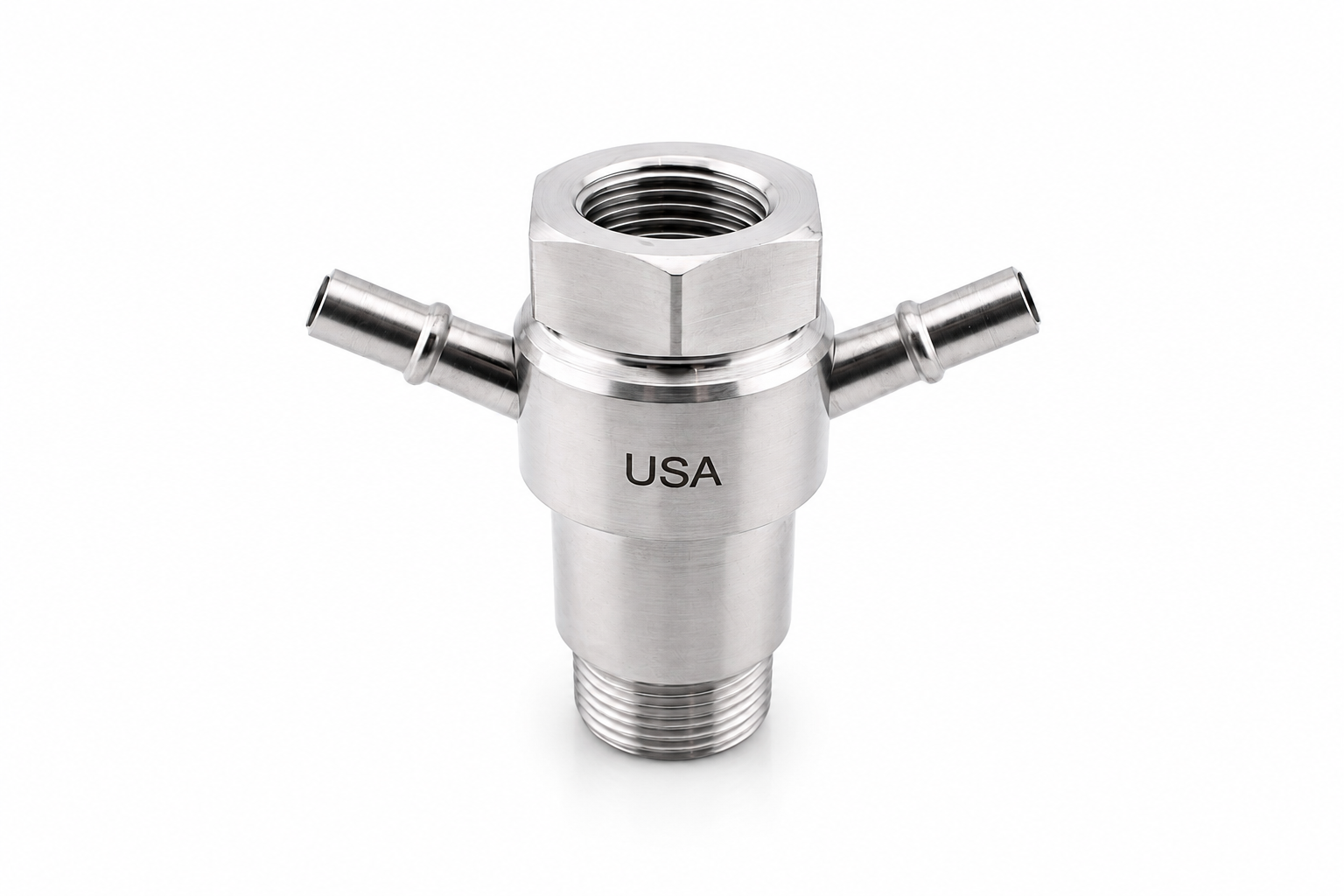

Mixing Chamber for Pivot Plus - Low Profile

The Low Profile Mixing Chamber is designed for Flow Pivot Plus cutting heads and provides the controlled abrasive feed point needed to form a stable, focused waterjet stream. This chamber helps align the high-pressure water stream with the abrasive path before it enters the mixing tube, supporting consistent abrasive draw, clean kerf formation, and reliable cut quality in low-profile cutting head configurations.

Related products:

• Nozzle Body Pivot Plus 60K 2 Inch (060010-1) — houses and supports the Pivot Plus nozzle stack used with this low-profile mixing chamber.
• QBIC Mixing Tube (1000004-xx-xx) — focuses the abrasive stream after it exits the mixing chamber.
• Mixing Tube QBIC Plus (010460-xx-xx) — compatible with Pivot Plus cutting heads and useful when refreshing the abrasive cutting stack.
• Paser 4 60K Diamond Orifice (015849-xx) — creates the high-pressure water stream that feeds into the chamber for abrasive mixing.
• Precision Collet .281 to .242 Inch (A-23161-8) — helps secure the mixing tube and maintain proper alignment through the cutting head assembly.

Service tip: Inspect the chamber inlet and bore whenever cut quality drops, abrasive draw becomes inconsistent, or the mixing tube shows uneven wear. For best performance, replace worn orifices, chambers, and mixing tubes together so the jet remains centered and the new components are not damaged by misalignment or washout.
