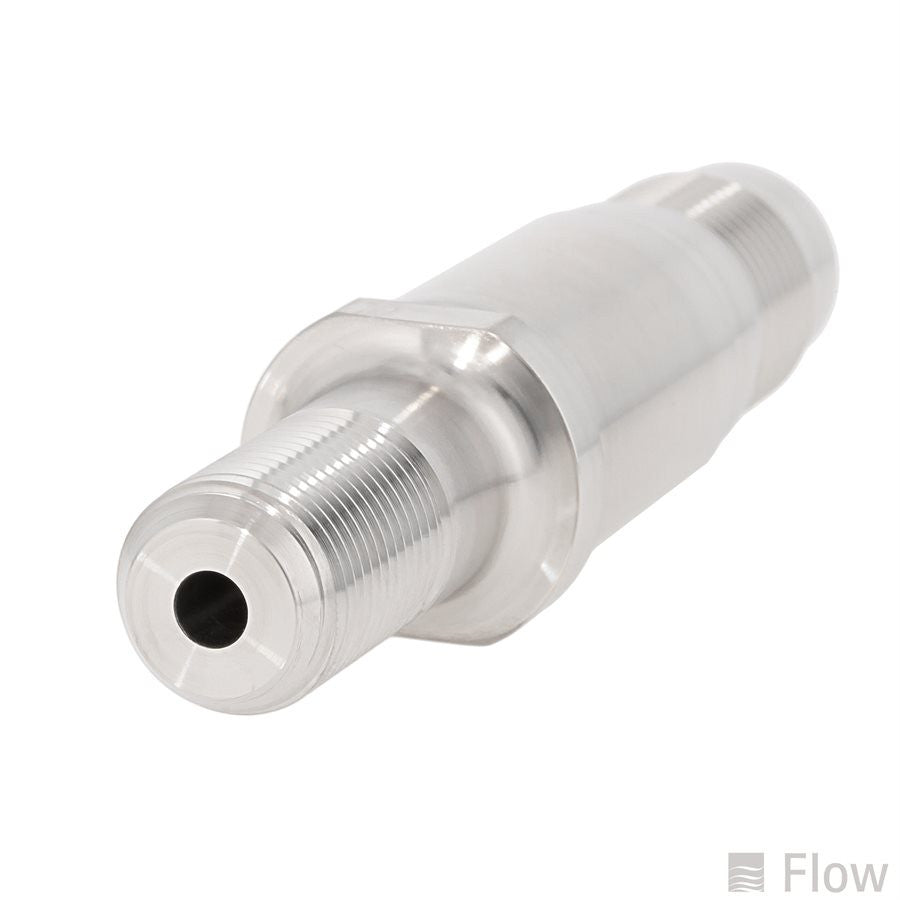

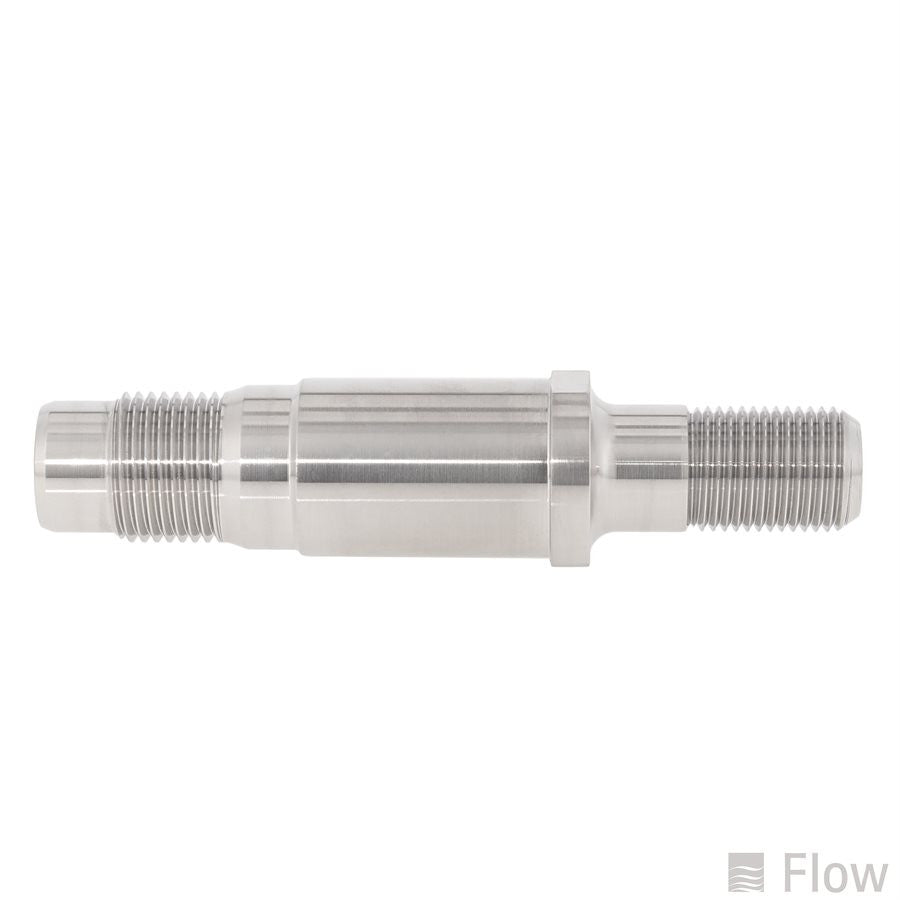

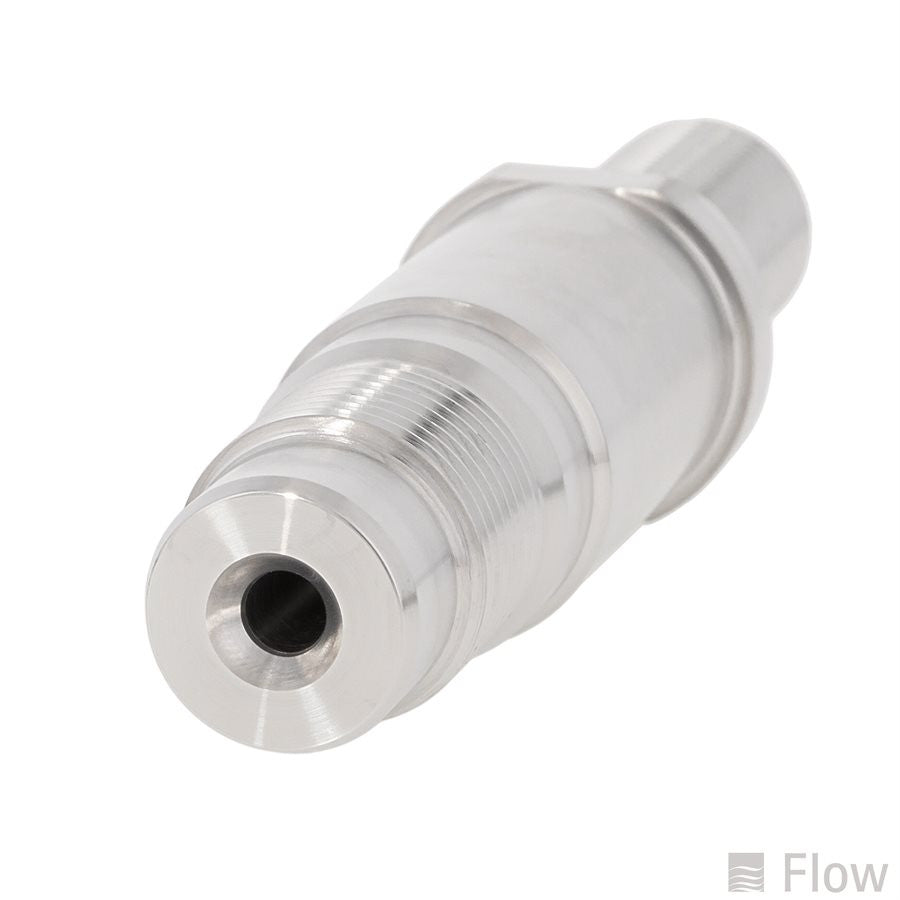

87K Nozzle Body 4"

Designed to support and align the nozzle stack in Flow waterjet systems operating up to 87,000 psi. It provides the rigid body structure needed to hold the orifice, mixing chamber, mixing tube, and retaining components in proper concentric alignment, helping maintain stable jet formation, consistent abrasive draw, and repeatable cut quality. This part is commonly replaced when the nozzle body shows wear, thread damage, erosion, or alignment issues that can shorten consumable life.

Related products:

• 87K Paser 4 Cutting Head Assembly 4 Inch (041136-1) — complete cutting head assembly that includes key nozzle stack components for 87K operation.
• Paser 4 Mixing Chamber Assembly (041138-1) — supports abrasive entrainment and works with the nozzle body to form a stable cutting jet.
• Precision Nozzle Body Collet 9/32 Inch ID (710806-1) — secures the mixing tube inside the nozzle body for accurate alignment.
• Knurled Nozzle Nut 60K/90K (711589-1) — retains the nozzle body stack and helps keep components seated during cutting.
• Paser ECL and Paser 4 Mixing Tube Spacer (712265-1) — helps maintain correct spacing between the mixing tube and chamber.

Service note: Inspect the nozzle body bore, threads, sealing faces, and mixing tube seating area during maintenance. Replacing worn nozzle stack components together helps prevent misalignment, poor abrasive draw, taper, and premature wear on newly installed parts.
