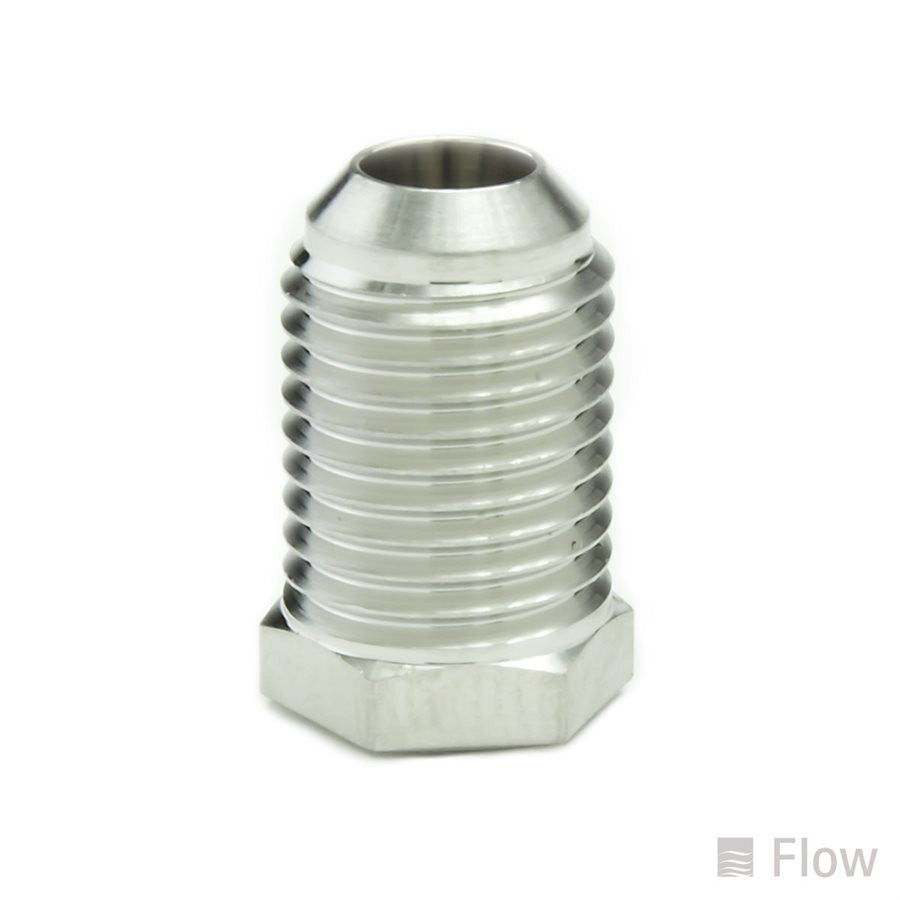

Hornet® Orifice
Hornet® Orifice
The Orifice Assembly for Hornet® cutting heads is engineered to deliver precise, consistent waterjet cutting performance. This assembly houses the diamond orifice, which focuses the high-pressure water stream into a stable, coherent jet for maximum cutting accuracy and efficiency.
Related Products:
- Mixing Tube QBIC 0.030" ID (012680-30-xx)
- Shape Mixing Tube TrimLine (1000002-30-xx)
- Seal Assembly Cartridge — 87K PH2 Intensifier (040015-1) — helps maintain pump pressure consistency, critical to orifice performance.
- Valve Assembly, Check — 87K PH2 Intensifier (020071-1) — ensures steady inlet and outlet flow to support reliable jet formation through the orifice.
Service note: Always replace orifice and mixing tube together to maintain optimal jet coherence. Using worn or mismatched components can lead to jet diffusion, poor cut quality, and accelerated wear of surrounding hardware.
