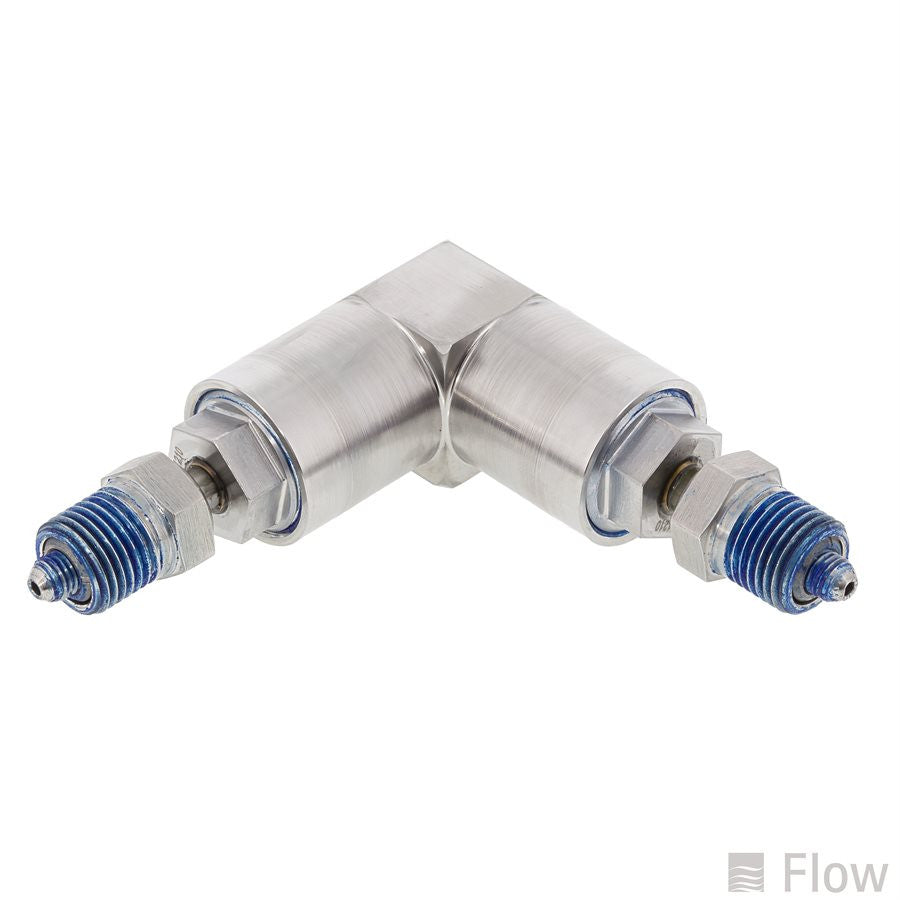

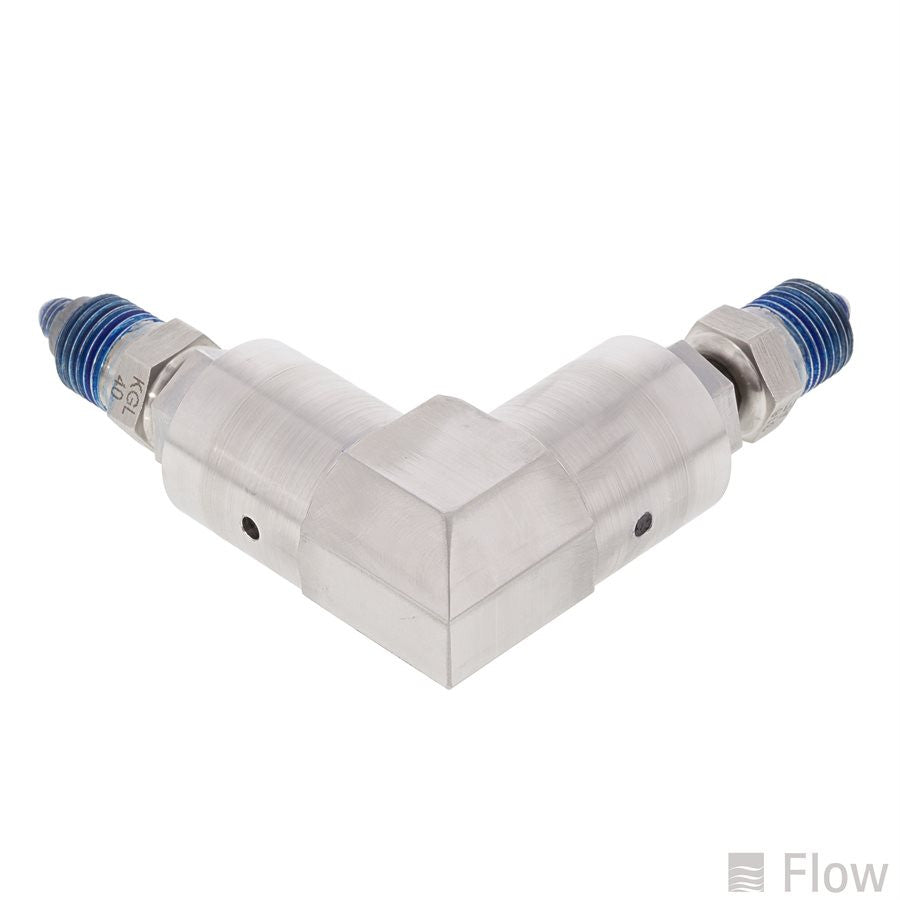

60K 1/4" 90 Degree Dual Axis Swivel Assembly

This compact swivel lets your cutting head pitch and yaw independently without twisting high pressure lines. A pair of precision thrust bearings carries side load while a polished, through bored shaft routes the full 60,000 psi stream, keeping the jet aligned during sharp bevels and tight curves. Integral anti rotation stops protect hoses, and the ¼ inch HP ports accept standard 60K cone hardware for leak free service.

Related Products:

• Swivel Shaft 60K (B-5491-1) — replacement stainless shaft that carries the HP water through the swivel.
• Swivel Seal Ring 60K (B-1790-1) — hoop that delivers a leak free seal between shaft and body.
• Anti-Vibration Gland ¼″ 60K (A-2866) — clamps the tube’s cone tight against the swivel port.
• Anti-Vibration Collar ¼″ 60K (A-2867) — locks the gland and absorbs vibration.
• Swivel Repair Kit ¼″ Dual Axis 60K (B-5910-1)

Service tip: rebuild the swivel every 1,000 pump hours or at the first sign of side leak; installing a fresh seal ring, shaft, gland, and collar together keeps your 60K line leak-free and the head rotating smoothly.
