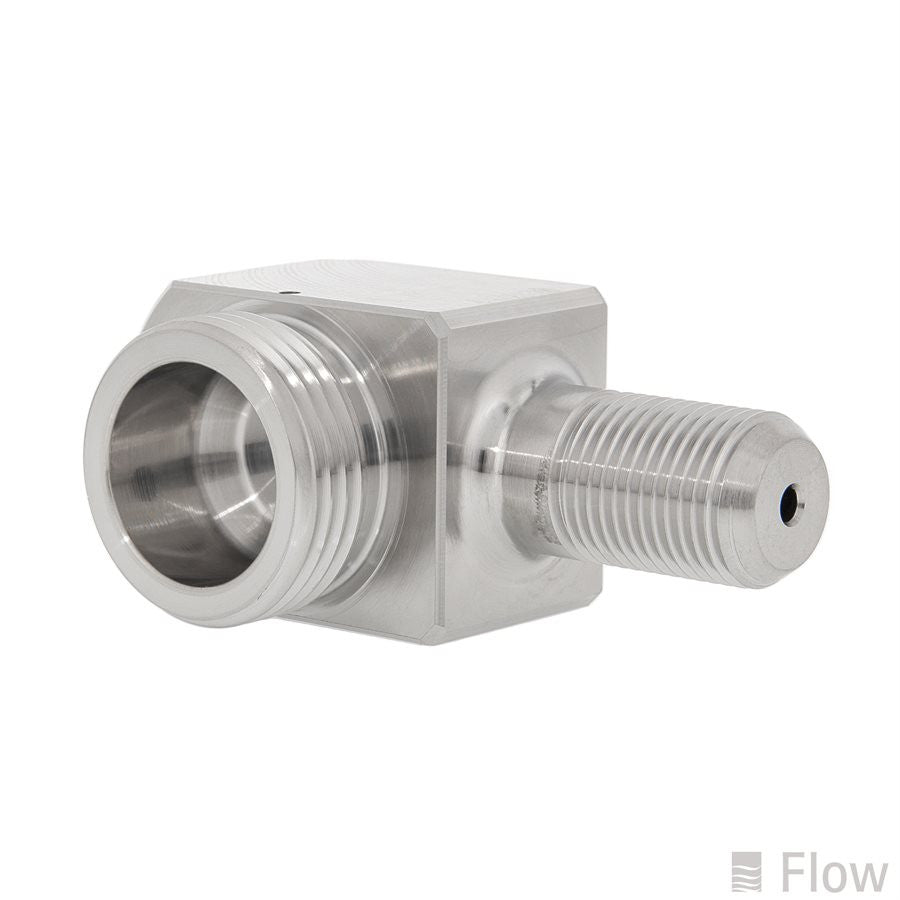

On/Off Valve Cutting Head Adapter 90 degree

The 90° Adapter for On/Off Valve to Cutting Head is a precision machined high pressure fitting designed to create a durable, leak free 90 degree connection between the on/off valve outlet and the cutting head assembly in 60K and 87K waterjet systems. Its compact elbow design provides an efficient routing solution where space is limited, reducing the risk of vibration related wear and optimizing system longevity.

Related products:

• On/Off Valve Assembly — Mini 60K (011119-1) — mounts directly to this adapter for precise water control during cutting operations.
• Cutting Head Assembly — 60K (010747-1) — compatible with the 90° adapter to provide a complete cutting head connection.
• Swivel Assembly — Double Axis 90° 87K (011851-1) — enables flexible movement and alignment in the high-pressure line near the cutting head.
• Nozzle Body — 87K 63.5 mm (010695-1) — pairs with this adapter for a robust cutting head setup capable of precision operation.
• Nut, Mixing Tube, Paser® ECL SST (010662-1) — secures the mixing tube assembly connected downstream of the cutting head.

Service note: This adapter should always be inspected for surface wear or thread damage before reinstallation to ensure high-pressure integrity. Use only compatible Flow or Paser® cutting heads and valves to maintain correct pressure ratings and sealing performance. Torque to OEM specification using appropriate high pressure rated tools.
