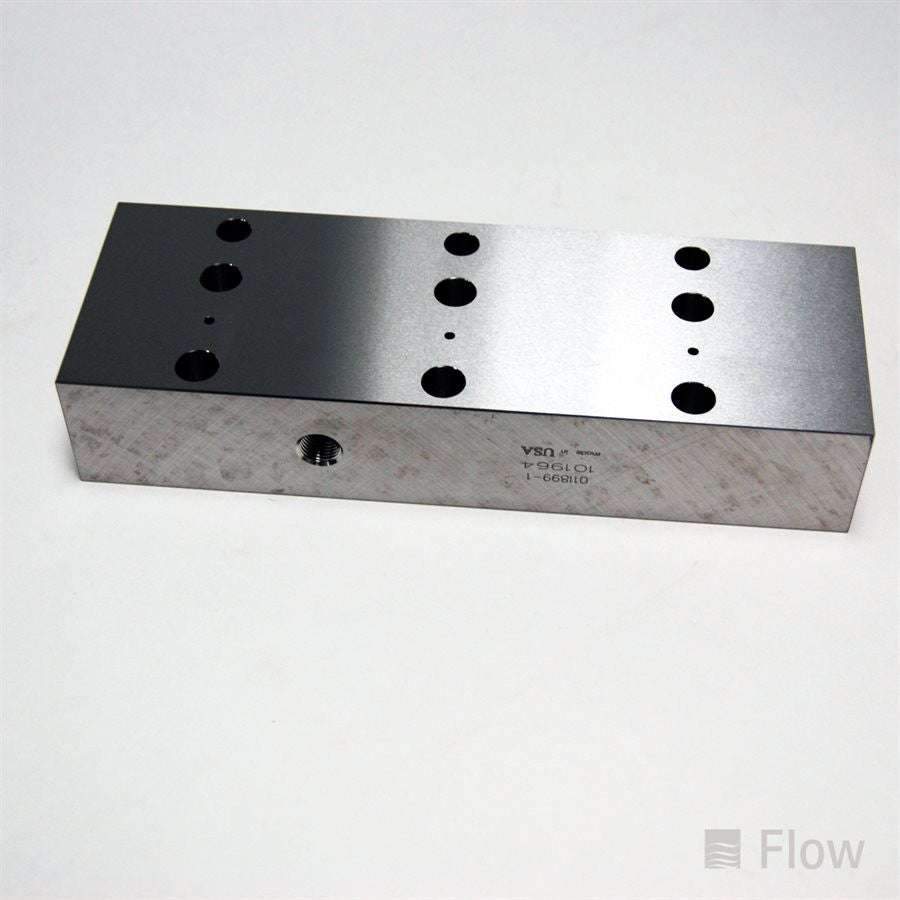

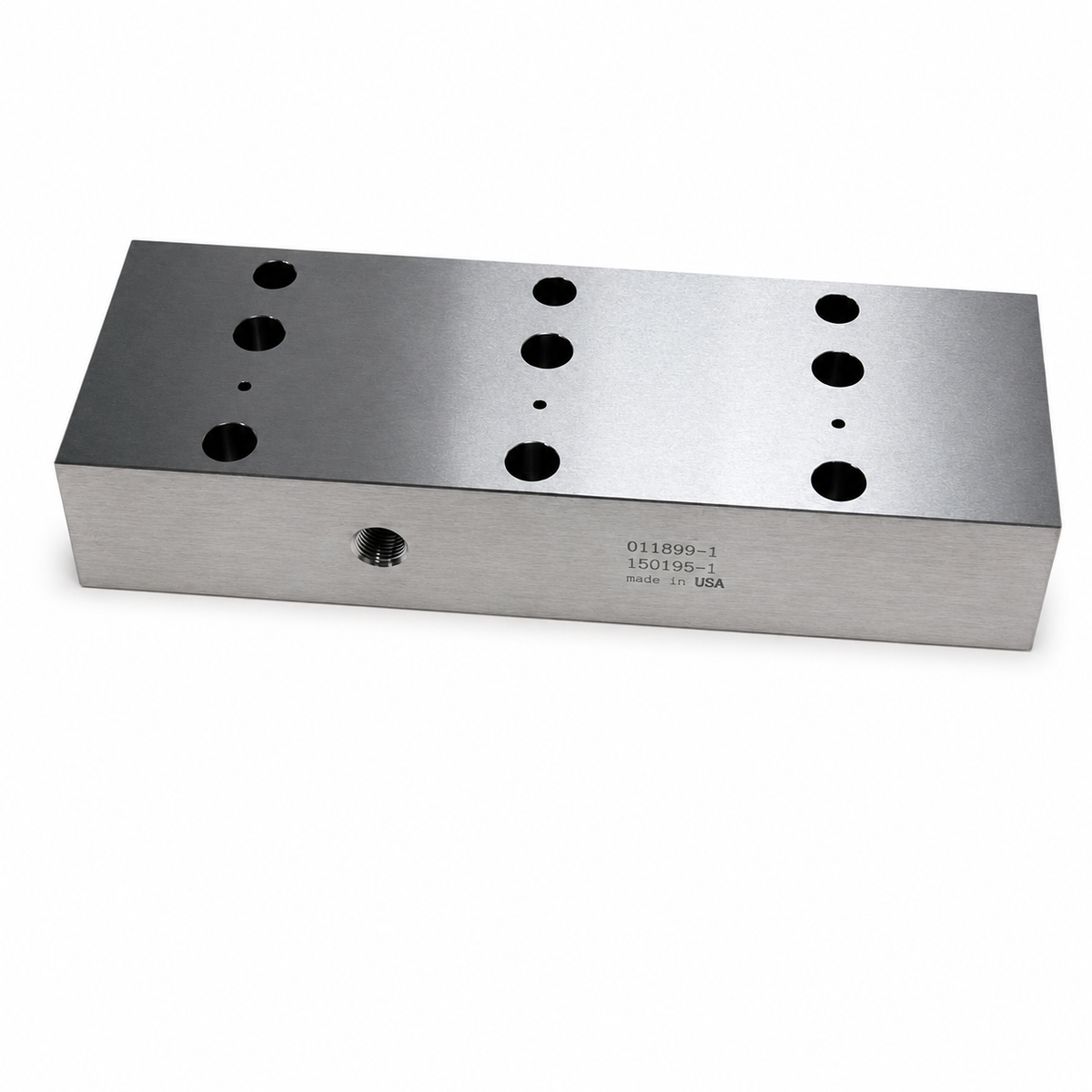

Direct Drive End Cap

A water-end manifold component used in direct-drive pump assemblies to close and support the high-pressure water section. It provides the machined sealing interface for adjacent water-end components and helps maintain proper alignment under repeated high-pressure cycling. This part is typically replaced when the existing end cap shows wear, sealing-surface damage, corrosion, or fatigue around the manifold connection points.

Related products:

• 55K Direct Drive End Cap (011044-1) — another direct-drive end cap option used in 55K Eagle-style pump assemblies.
• 60K End Cap Assembly (049887-1) — end cap assembly for HyPlex Prime direct-drive pump service.
• Direct Drive Seal Carrier Assembly (044099-1) — supports the sealing stack that works with the direct-drive water-end assembly.
• 55K High-Pressure Cylinder (013932-1) — pairs with direct-drive water-end components to contain the high-pressure water side.
• Direct Drive Check Valve Assembly 55K (013385-1) — controls inlet and outlet water flow through the direct-drive high-pressure manifold.

Service note: Always inspect sealing faces, threaded ports, static seals, check valve components, and mating cylinders during end cap replacement. Clean all high-pressure interfaces before assembly and torque connections according to Flow service procedures to prevent leaks and uneven loading.
