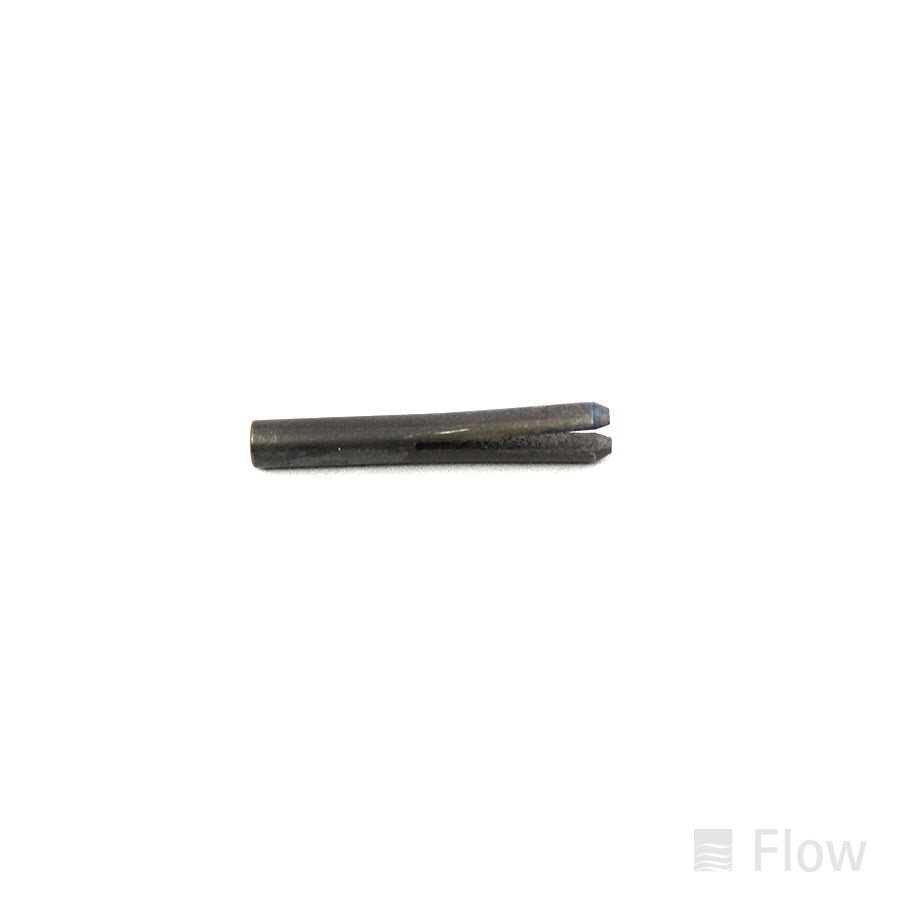

High-Pressure Mechanical Shift Actuator Pin

Hardened, split-style pin that provides the mechanical backup trigger for stroke reversal on Flow intensifiers. If the electronic shift signal is missed, the pin physically trips the shift mechanism at end-of-stroke to prevent over-travel, pressure spikes, and seal damage. Replace any time the tip is mushroomed, bent, or worn.

Related Products:

• Electronic Shift Proximity Sensor Assembly (011275-1) — primary end-of-stroke sensor the pin backs up.
• Actuator Assembly, Electronic Shift (B-8346-1) — houses the firing pin the shift pin contacts.
• Compression Spring .396 ID × .48 OD (A-2409) — return spring that resets the actuator each stroke.


Service tip: set pin projection per the service manual and use medium-strength threadlocker on the jam nut. After install, jog the pump at low pressure and verify clean reversals on both ends.
