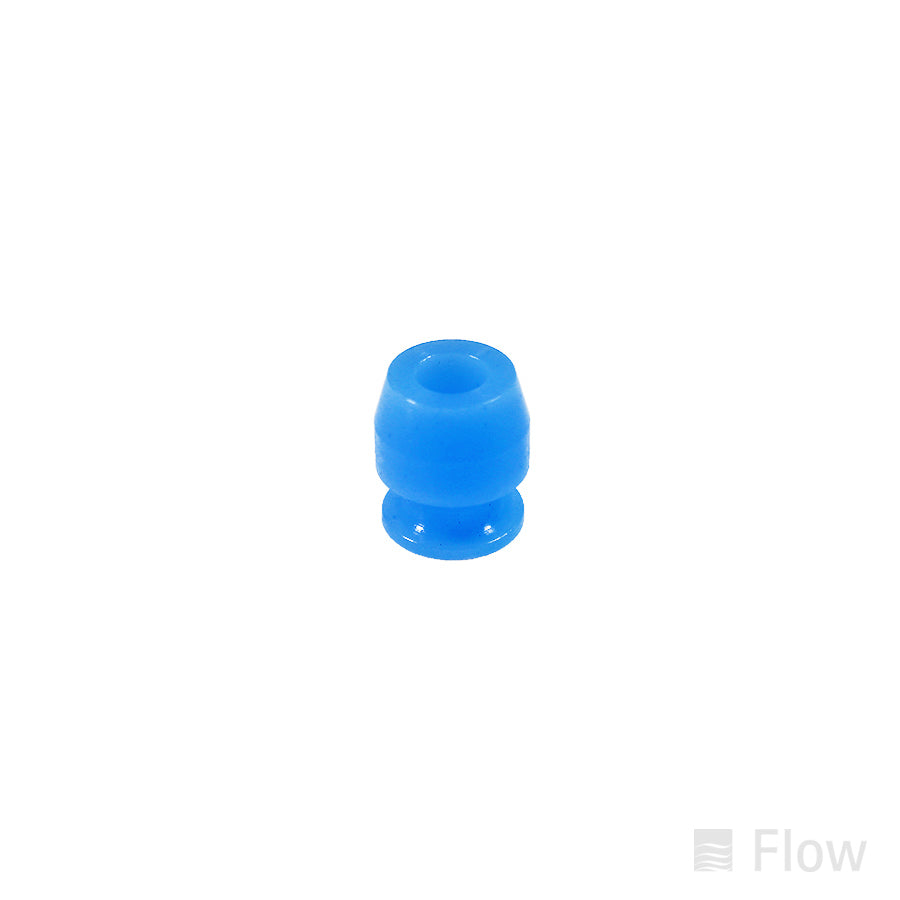

87K Swivel Seal 1/4" ID

The 87K Swivel Seal with a 0.25-inch inside diameter is a blue LSP high-pressure sealing component designed for Flow waterjet swivel assemblies operating at pressures up to 87,000 psi. Installed within the swivel's internal sealing system, this component helps prevent high-pressure water leakage around the rotating shaft while allowing smooth cutting head articulation. It supports consistent pressure containment during multi-axis cutting operations and is compatible with designated Flow 87K single-axis and dual-axis swivel assemblies.

Related Products:

• 87K Swivel Maintenance Kit (015093-1) — complete swivel rebuild kit containing replacement blue swivel seals, seal hoops, back-up rings, bearings, and other essential components.
• 87K Swivel Seal Ring (013634-1) — supports high-pressure sealing between the swivel shaft and body while accommodating rotational movement.
• Swivel Shaft Back-up Ring (014373-1) — ToughMet back-up ring that supports the swivel sealing assembly and helps prevent seal extrusion under extreme pressure.
• 87K 1/4 Inch 90 Degree Dual-Axis Swivel Assembly (014922-1) — enables two-axis cutting head articulation while maintaining high-pressure water delivery.
• 87K 1/4 Inch 10 Degree Single-Axis Swivel Assembly (049358-1) — provides controlled angular movement for precision bevel cutting and other articulated waterjet applications.

Service note: Before replacing swivel seals, completely depressurize the waterjet system and inspect the swivel shaft, seal hoop, and back-up rings for scoring, deformation, or excessive wear. Follow Flow's recommended installation and pressure-testing procedures before returning the swivel assembly to operation.
