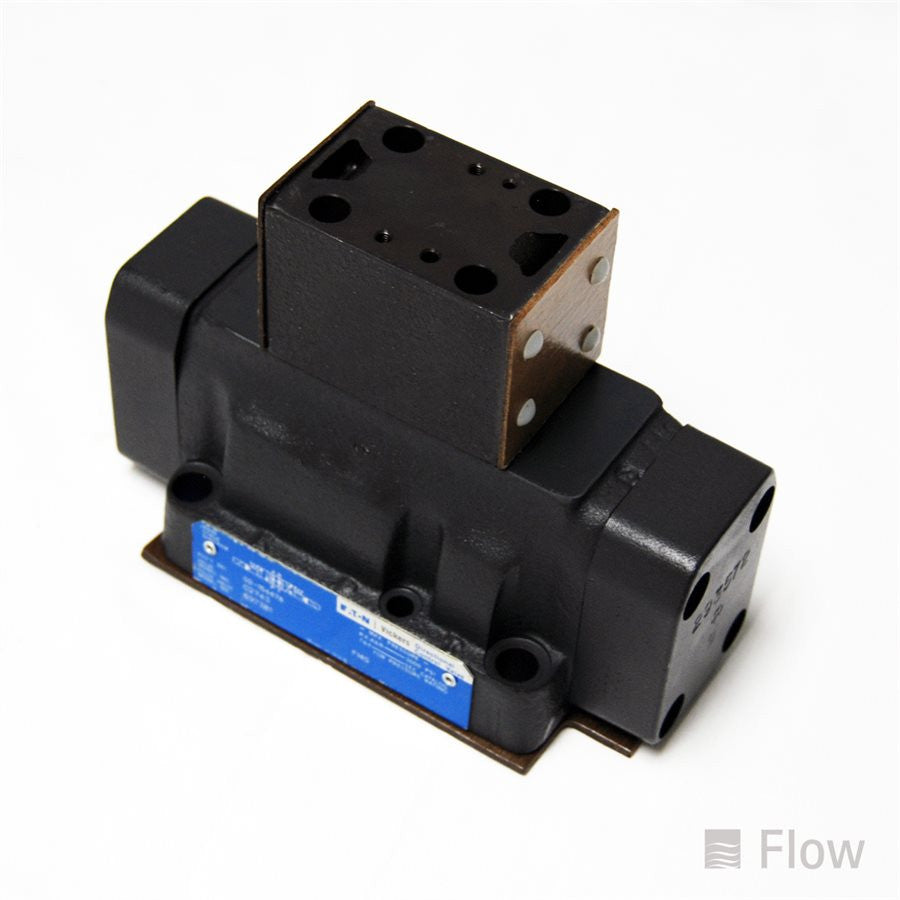

Mechanical Shift Valve with Pilot Valve

The Mechanical Shift Valve with Pilot Valve is a Flow OEM pump valve assembly used to control hydraulic shifting in compatible waterjet pump systems. The integrated pilot valve helps direct the actuation signal that reverses intensifier stroke direction, supporting consistent pressure cycling, stable pump operation, and reliable cutting performance. This assembly is typically replaced when shift timing becomes inconsistent, hydraulic response slows, or valve wear begins affecting intensifier operation.

Related Products:

• Pilot Valve Without Connectors 24 VDC (A-10544) — a related pilot valve used in pump valve control circuits.
• Shift Valve Solenoid With Pilot Valve (A-18862) — an electrically actuated shift valve option for systems using solenoid-controlled shifting.
• Main Stage Shift Valve Without Pilot Valve (A-18875) — the main shift valve body used when the pilot valve is serviced or supplied separately.
• Integrated Shift Module Assembly (A-19560) — supports electronic shift control and pilot-valve coil operation on compatible HyperJet® systems.
• Proportional Valve Manifold Pump Assembly (A-14612) — a related pump manifold component involved in hydraulic control and pressure regulation.

Critical note: Before installation, inspect hydraulic fittings, electrical or pilot-control connections, and surrounding valve manifold surfaces for contamination or damage. A clean hydraulic circuit and correctly functioning pilot signal are essential for smooth stroke reversal and stable pump pressure.
