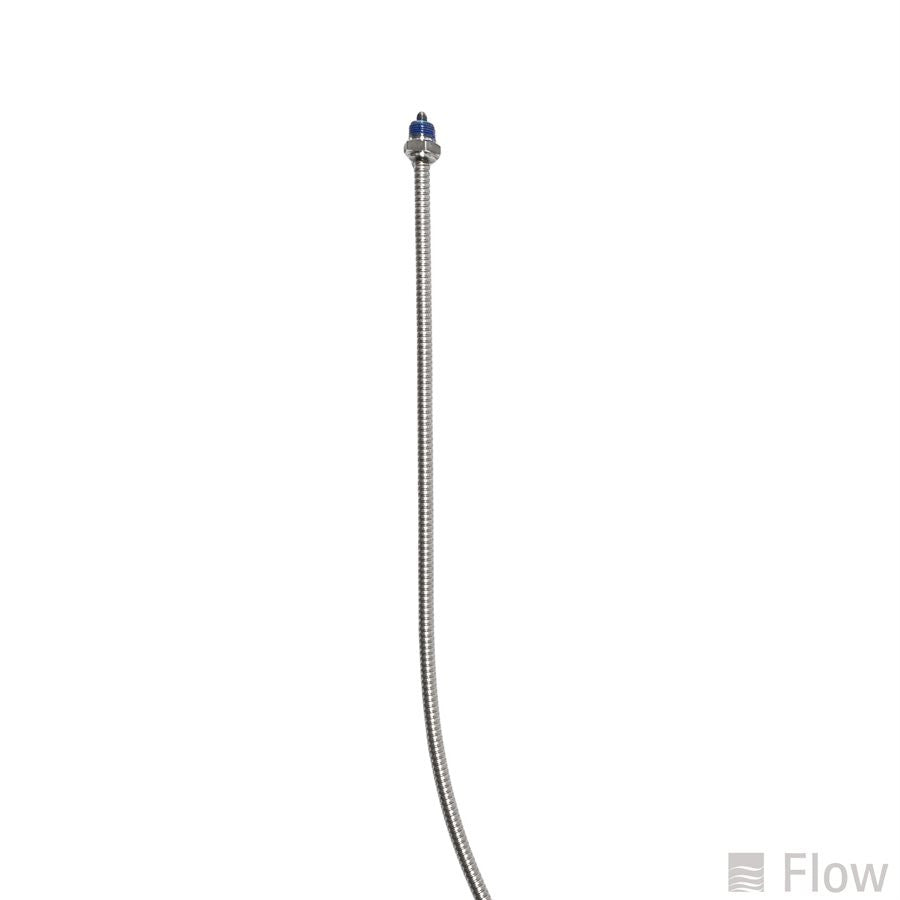

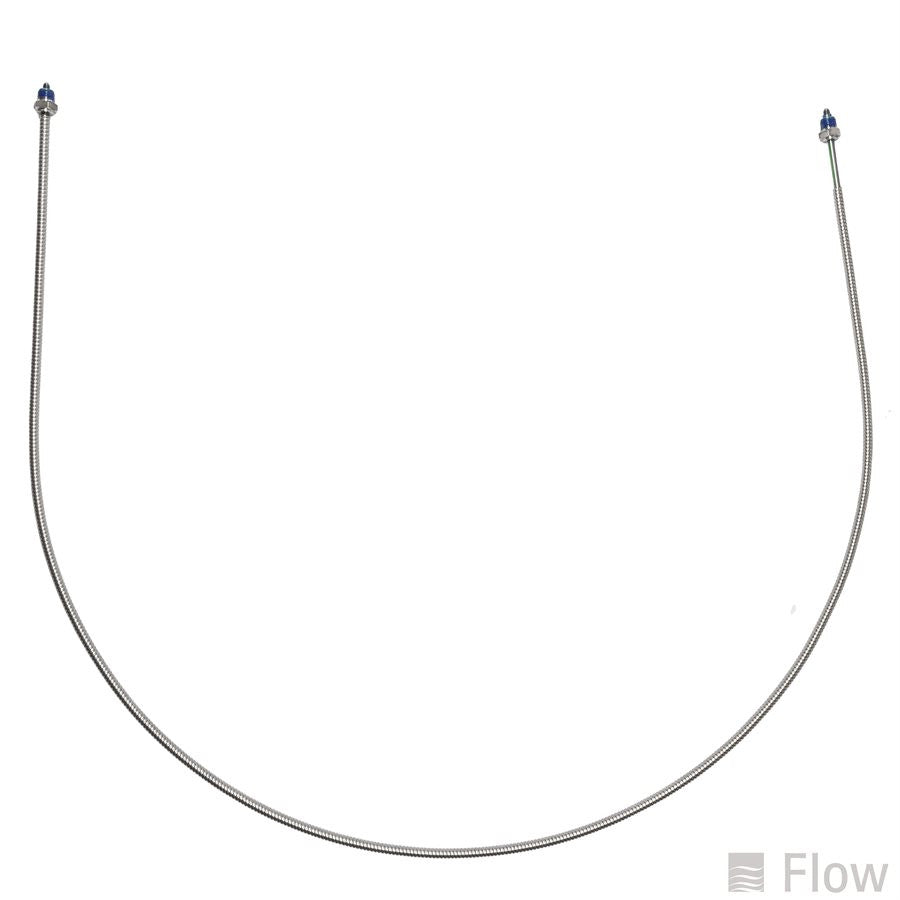

Whip Assembly 1/4" 87K IFB 6.6'

This pre‑bent stainless tube carries the full 87,000 psi stream up the IFB machine’s vertical (Z) axis, linking the stationary swivel block to the cutting head stack. Factory cones, collars and hydro test certification mean you bolt it in, torque, and cut; no field flaring or guess bending.

Pair with:

• ¼″ 87 K Anti Vibration Gland (044347‑1)
• ¼″ 87 K Anti Vibration Collar (044348‑1)
• 3⁄8″ × ¼″ 87 K HP Adapter (013149‑1 manifold or pump transition)
• Double HP Insert Cone (3⁄8″) (012952‑1 renew with every tube/whip change)
• 87 K Whip main bridge lead (040300‑1)
• C‑ / B‑ / Vertical‑Axis tubes for Dynamic/DWJ heads (e.g., 047095‑1, 047097‑1, 056220‑1)

Service tip: Treat the whip as a consumable (~1,000–1,500 pump hours or any sign of cone wear). Always install fresh cones, glands, and collars to keep the 87 K circuit leak free and protect on/off valves and mixing hardware.
