Orifices: Ruby
subcategory: Orifice

Flow Parts

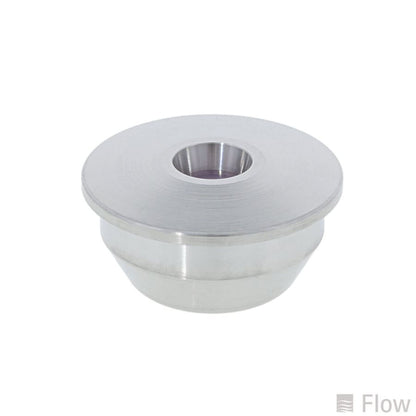

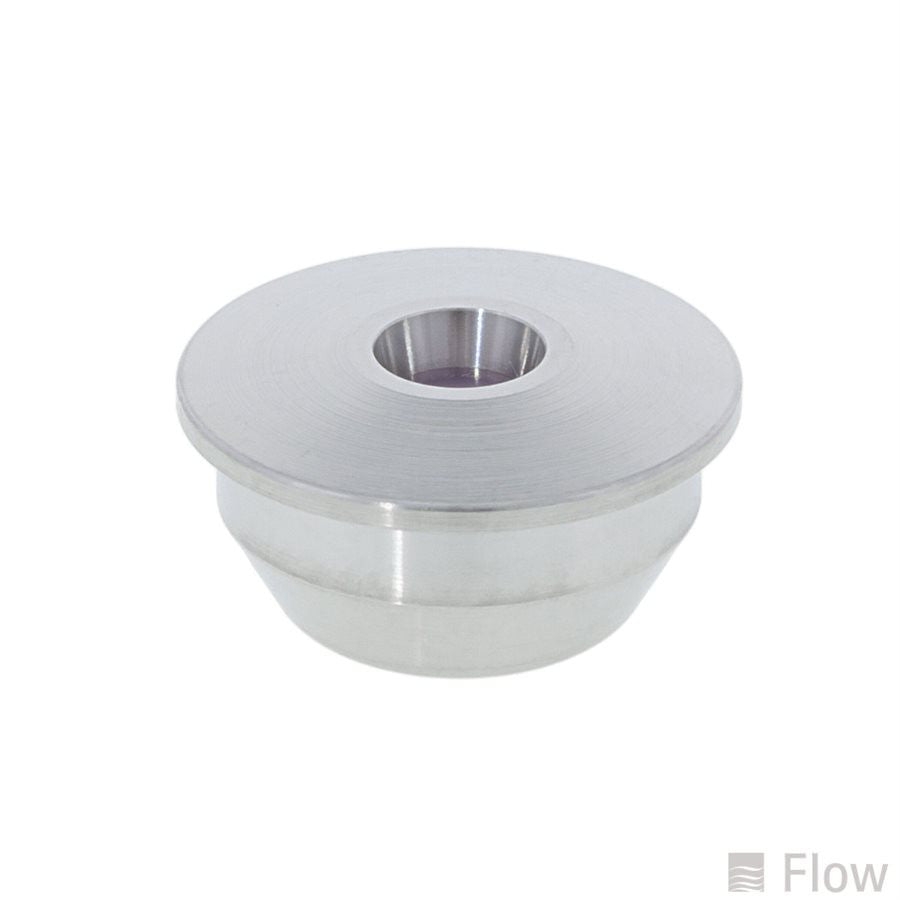

Paser® ECL Ruby Orifice

Paser® ECL Ruby Orifice

SKU:

High precision ruby orifice for the Paser ECL cutting head. Choose your jet size from .009 to .018 in Inner Diameter to match cut speed and edge finish. The threaded mount drops in above the mixing chamber for fast swaps during nozzle service.

Related Products:

  • Paser ECL Mixing Chamber Assembly (017364-1) — venturi body the orifice seats against for proper vacuum draw.
  • 60K Paser ECL Plus Nozzle Body (014196-1)
  • Mixing Tube QBIC Plus (010460-xx) — ROCTEC® 500 liner that focuses the abrasive jet.
  • Knurled Nozzle Nut 60 K / 90 K (711589-1) — secures the stack in the nozzle body.
  • Precision Collet .281–.242 in (A-23161-8) — holds the mixing tube with repeatable preload.

Tip: When changing orifice size, also inspect the chamber inlet edge and mixing tube ID—replacing them as a set helps maintain jet coherence and consistent cut quality.
