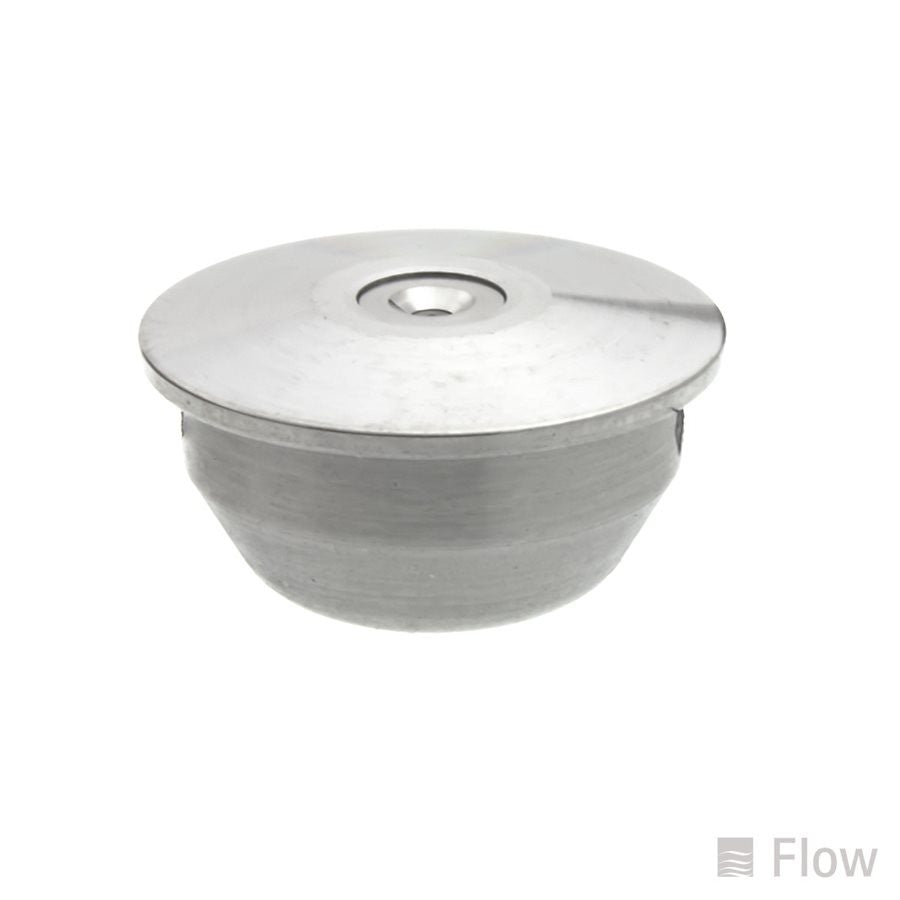

Duraflow® Diamond Orifice
Duraflow® Diamond Orifice
The Duraflow® Orifice is a diamond orifice used to create a precise, coherent high-pressure waterjet stream before abrasive is introduced in the cutting head. Its diamond jewel construction provides excellent wear resistance and helps maintain consistent jet diameter over extended cutting runs, improving cut quality, abrasive efficiency, and repeatability. Available in multiple orifice diameters, this orifice should be matched to the correct mixing tube size and application requirements for the best balance of speed, edge finish, and component life.
Related products:
- Paser 4 60K Diamond Orifice (015849-xx) — a related diamond orifice option for Flow Paser 4 cutting heads operating at 60,000 psi.
- Paser ECL Ruby Orifice (014201-xx) — a ruby orifice option used in Paser ECL cutting head configurations.
- Paser ECL Mixing Chamber Assembly (017364-1) — seats below the orifice and supports stable abrasive entrainment in the cutting head stack.
- DELTA Standard Waterjet Mixing Tube for Paser ECL and Paser 4 (1000001-xx-xx) — focuses the abrasive waterjet after mixing for consistent kerf quality and cutting performance.
- Knurled Nozzle Nut 60K/90K (711589-1) — secures the cutting head stack and helps maintain proper alignment between the orifice, chamber, and mixing tube.
Service note: Handle diamond orifices carefully and keep the jewel face clean during installation. Always inspect the mixing chamber inlet, mixing tube bore, and sealing surfaces when changing orifice size, since worn or misaligned downstream components can reduce jet coherence and shorten orifice life.
