60k Flow OEM ESL® Intensifier Assembly

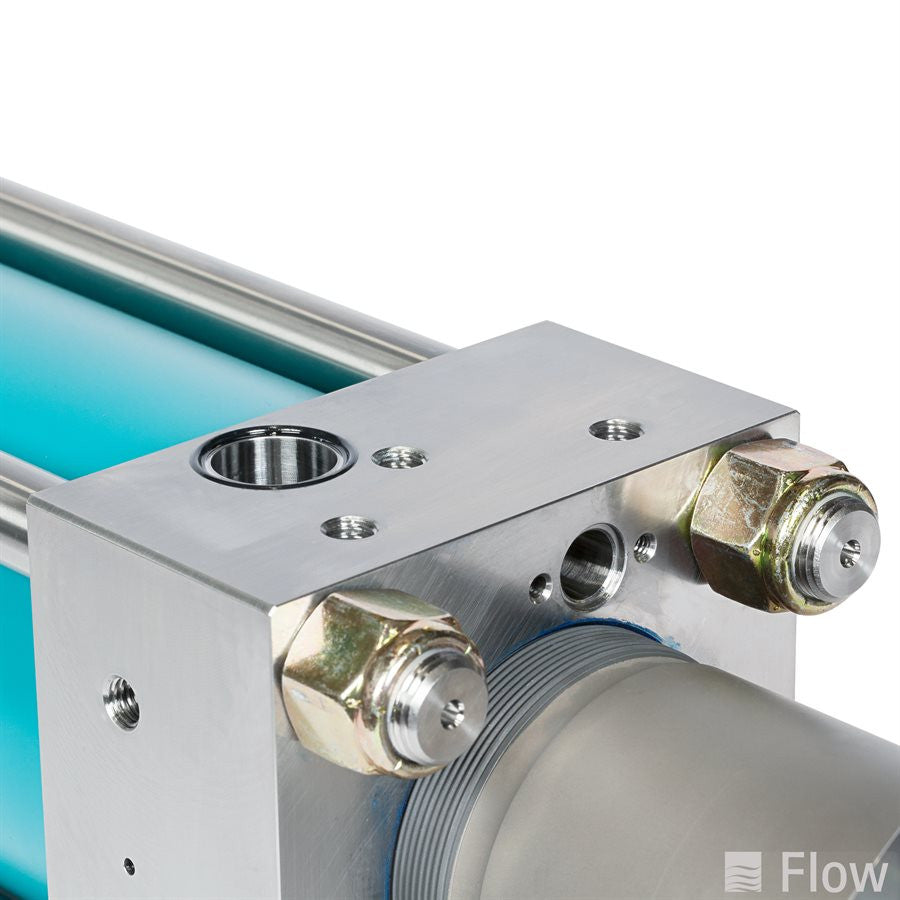

The 60K Flow OEM ESL® Intensifier Assembly is a complete replacement intensifier for Flow 60,000 psi electric-shift pump systems. This assembly is responsible for converting hydraulic pressure into ultra-high-pressure water output for abrasive and pure waterjet cutting. Built for ESL® intensifier platforms, it supports consistent pressure generation, stable cycling, and dependable long-term pump performance when a full intensifier replacement is preferred over rebuilding individual high- and low-pressure components.

Individual Components (For reference only - some components not listed):

• 60K Intensifier High-Pressure Cylinder (007038-3) — supports the water-side pressure generation section of the ESL intensifier assembly.
• 60K Intensifier End Bell Assembly Left Side (007303-2) — left-side structural end bell used to support intensifier alignment and sealing.
• 60K Intensifier End Bell Assembly Right Side (007303-1) — right-side end bell used with the matching left-side component during intensifier service.
• 60K Intensifier Seal Ring (B-1465-1) — supports the high-pressure seal stack and helps prevent seal extrusion.
• 60K Intensifier Seal Backup Sleeve (B-1002-2) — helps support the low-pressure sealing package inside the intensifier.
• Intensifier Rod Seal (A-11275) — seals around the intensifier rod to help control hydraulic leakage.
• 60K Small Intensifier Snap Ring (A-0264-112) — retains internal seal and rod hardware inside the intensifier end bell.
• 60K Intensifier Component (010276-1) — related internal component used during ESL intensifier assembly or rebuild work.
• 60K Intensifier Component (1011345-1) — related service component for 60K intensifier maintenance.
• 60K Intensifier Seal Hoop (004407-1) — retains and supports the high-pressure seal package in the intensifier assembly.
• 60K Intensifier Component (05096771) — related component used in 60K intensifier service.
• Poly Pak Seal 3-5/8 Inch ID, 4 Inch OD, 3/16 Inch (A-1001) — low-pressure seal used to help maintain hydraulic sealing performance.
• 87K 3/8 Inch Anti-Vibration Gland (A-2838) — high-pressure tubing gland used where vibration-resistant tube connections are required.
• 87K 3/8 Inch Anti-Vibration Collar (A-2839) — matching collar used with the anti-vibration gland for secure high-pressure tubing installation.
• Food Grade O-Ring Lubricant (A-4689) — used during seal installation to reduce assembly damage and improve seal seating.
• 60K Low-Pressure Cylinder Tie Rod (B-1000-2) — secures the low-pressure cylinder and helps maintain proper intensifier clamping force.
• 60K Intensifier Low-Pressure Cylinder (C-1000-1) — forms the hydraulic oil chamber for the piston section of the ESL intensifier.

• 90 Durometer Nitrile O-Ring (A-00633-023) — static sealing O-ring used in high-load seal locations.
• 70 Durometer Black Nitrile O-Ring (A-0275-240) — Buna-N O-ring used in the low-pressure sealing system.
• Back-Up Ring Dash 240 (A-00250-240) — supports the matching O-ring and helps prevent extrusion under pressure.
• Steel Hex Lock Nut 3/4-16 (A-1000) — locking nut used to secure intensifier hardware during assembly.
• Straight Quick Disconnect Nipple (004345-1) — quick-disconnect fitting used in supporting pump and hydraulic connections.
• 90 Durometer Buna-N O-Ring (A-0274-6) — high-durometer O-ring used in demanding pump sealing locations.
• 60K Intensifier Piston Biscuit Plunger (007026-1) — transfers hydraulic force through the intensifier during each stroke.
• 60K Biscuit Spacer (007029-1) — spaces and supports the biscuit plunger assembly inside the intensifier.
• Intensifier High-Pressure Plunger Assembly (010253-1) — ceramic plunger assembly that works with the seal stack to generate cutting pressure.
• 60K Intensifier O-Ring (A-0270-300) — sealing component used during intensifier rebuild work.
• T-Seal (A-00251-18) — hydraulic sealing element used in the low-pressure intensifier seal package.
• 60K Check Valve Body (004383-3) — houses the internal check valve components that regulate one-way water flow.
• Check Valve Retaining Screw (004380-1) — retains the check valve stack inside the intensifier valve body.
• 60K Check Valve Seat (004382-1) — provides the precision sealing surface for the check valve poppet.
• 60K Check Valve Outlet Poppet (005917-1) — outlet-side poppet used to prevent reverse flow during pressure generation.
• Check Valve Support Assembly (010564-1) — stabilizes and aligns the inlet poppet for consistent valve reseating.
• 70 Durometer Black Nitrile O-Ring (A-0275-125) — O-ring used in the 60K check valve repair stack.
• Check Valve Compression Spring (A-1606) — provides closing force for the check valve poppet.
• 60K Check Valve Outlet Body Adapter (C-1313-1) — outlet adapter used with the 60K intensifier check valve assembly.
• Intensifier Check Valve Inlet Poppet (015384-1) — inlet-side poppet that meters water into the high-pressure cylinder and seals during the pressure stroke.

Critical note: Confirm pump configuration before replacement, especially whether the machine uses an electric-shift ESL® intensifier rather than a mechanical-shift design. During installation, flush hydraulic and water circuits, inspect mating manifolds and tubing, and verify shift operation before returning the pump to full cutting pressure.
